Interior, Front

  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION. )
  3. Disconnect the connector, then remove the screws.
  4. Remove the keyless antenna.
  5. Install in the reverse order of removal.

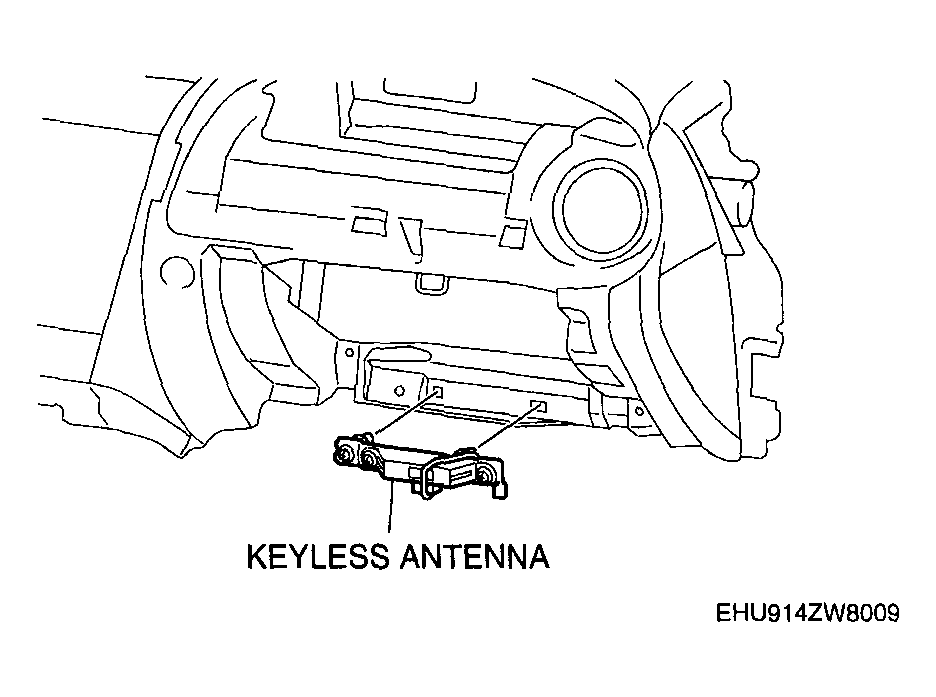

    Fig 1: Identifying Keyless Antenna
    G04564366Courtesy of MAZDA MOTORS CORP.
