Hood Latch And Release Lever Removal/Installation: Notes

  1. To remove the hood latch, remove the seal plate. (See FRONT BUMPER REMOVAL/INSTALLATION. )
  2. Remove in the order indicated in Fig 1.

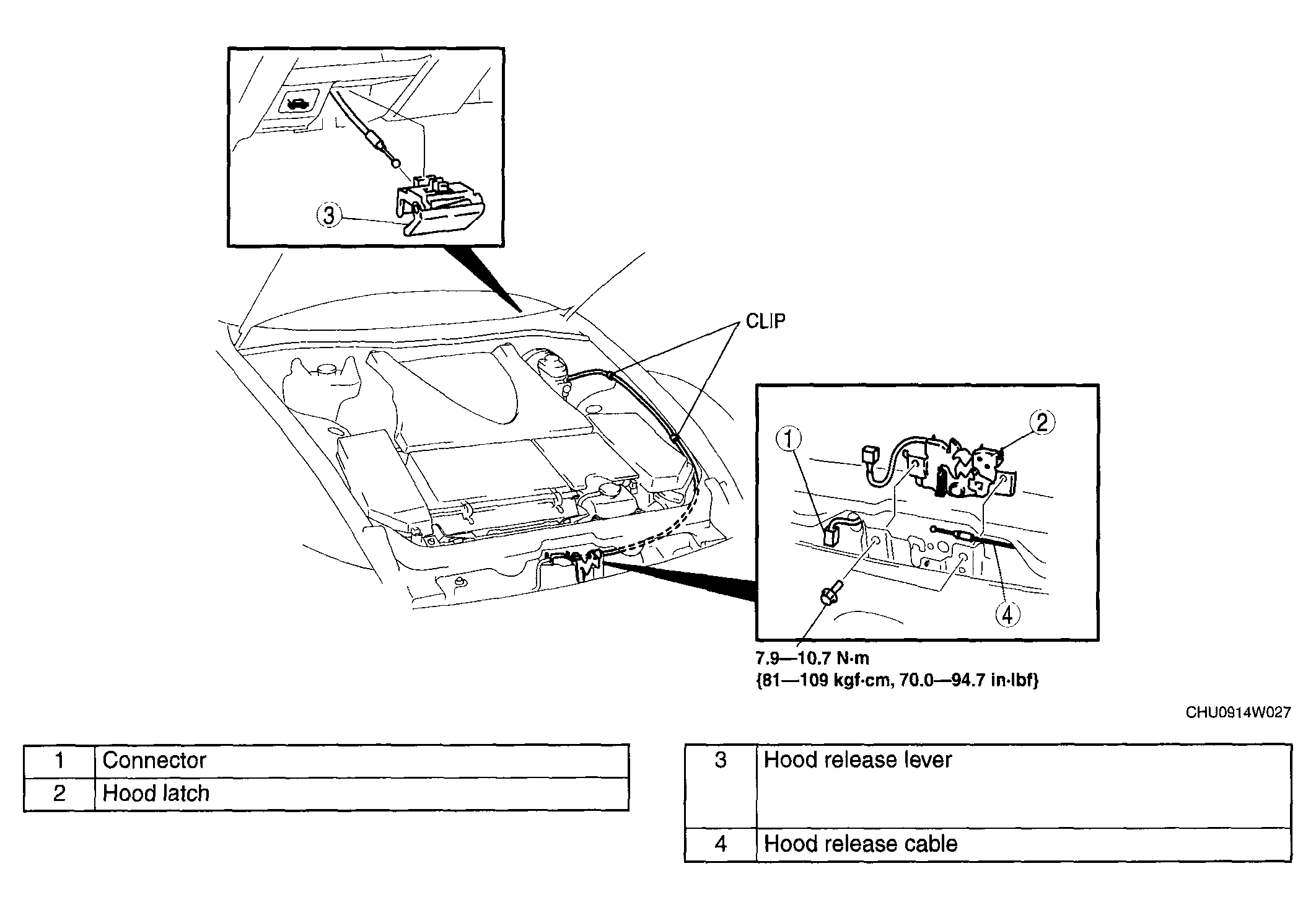

    Fig 1: Hood Latch & Release Lever With Torque Specifications
    G04564346Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Adjust the hood. (See HOOD ADJUSTMENT. )
