Door Lock Switch Inspection

  1. Inspect for continuity between the door lock switch terminals.
    • If not as specified, replace the door lock switch.

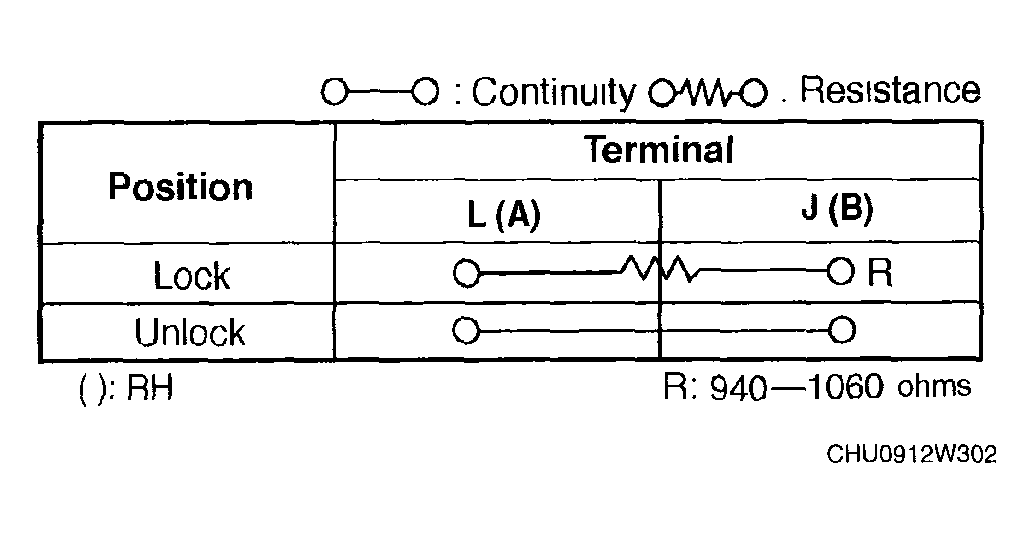

      Fig 1: Door Lock Switch Terminals Continuity Table
      G04564343Courtesy of MAZDA MOTORS CORP.

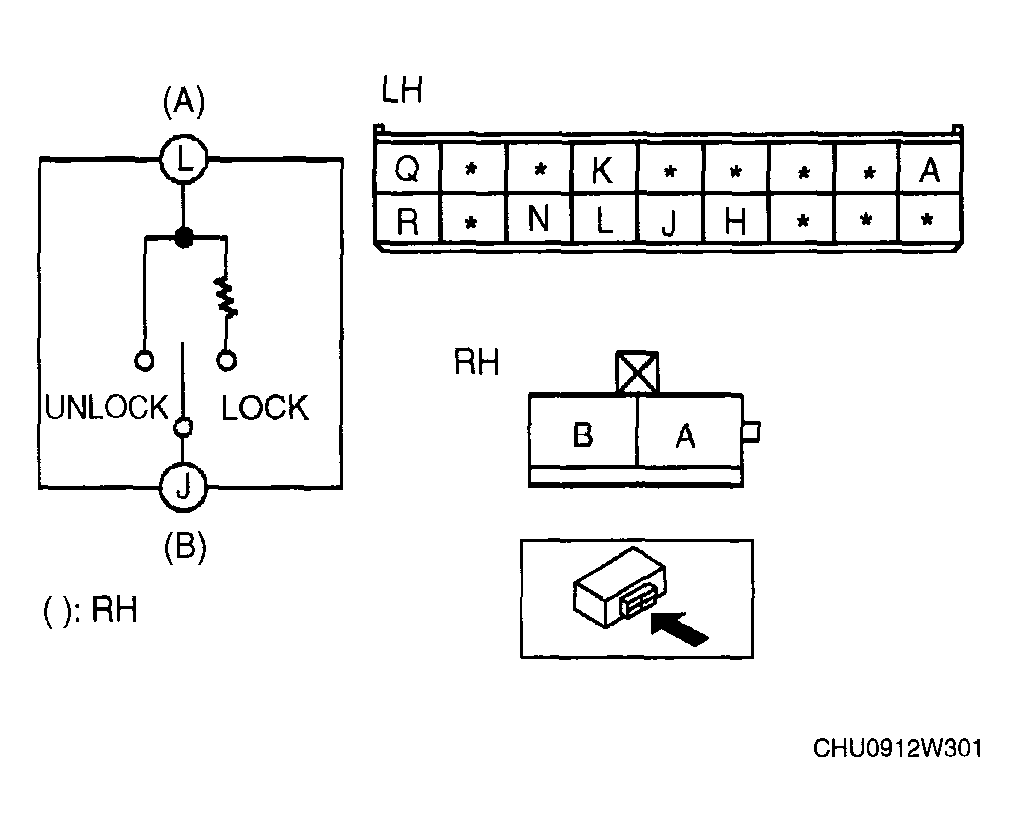

      Fig 2: Inspecting Door Lock Switch Connector Terminals
      G04564344Courtesy of MAZDA MOTORS CORP.
