Data Monitoring And Recording Procedure: Notes

  1. Connect the WDS or equivalent to the diagnostic connector 2 (16-pin).
  2. Verify the data monitor items.

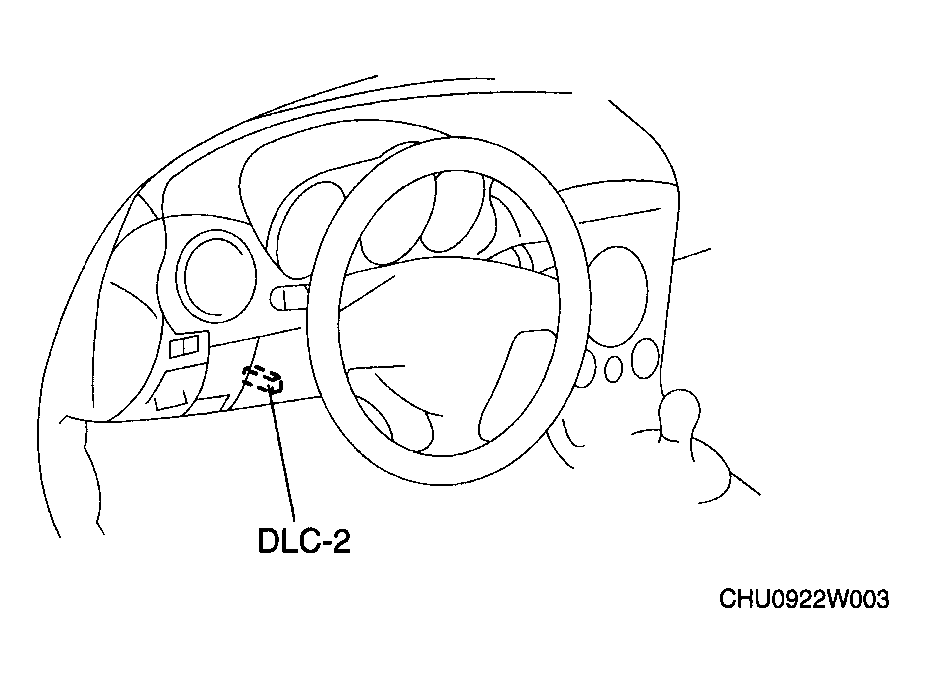

    Fig 1: Identifying DLC-2 Connector
    G04564706Courtesy of MAZDA MOTORS CORP.
