Transmitter Id Code Registration [With Keyless Entry System]

NOTE:
  • When programming the ID code into a keyless control module, verify that other transmitters are not being operated in the vicinity.
  • After ID code programming, remove the key from the steering lock and verify that all doors lock/unlock normally using the transmitter.

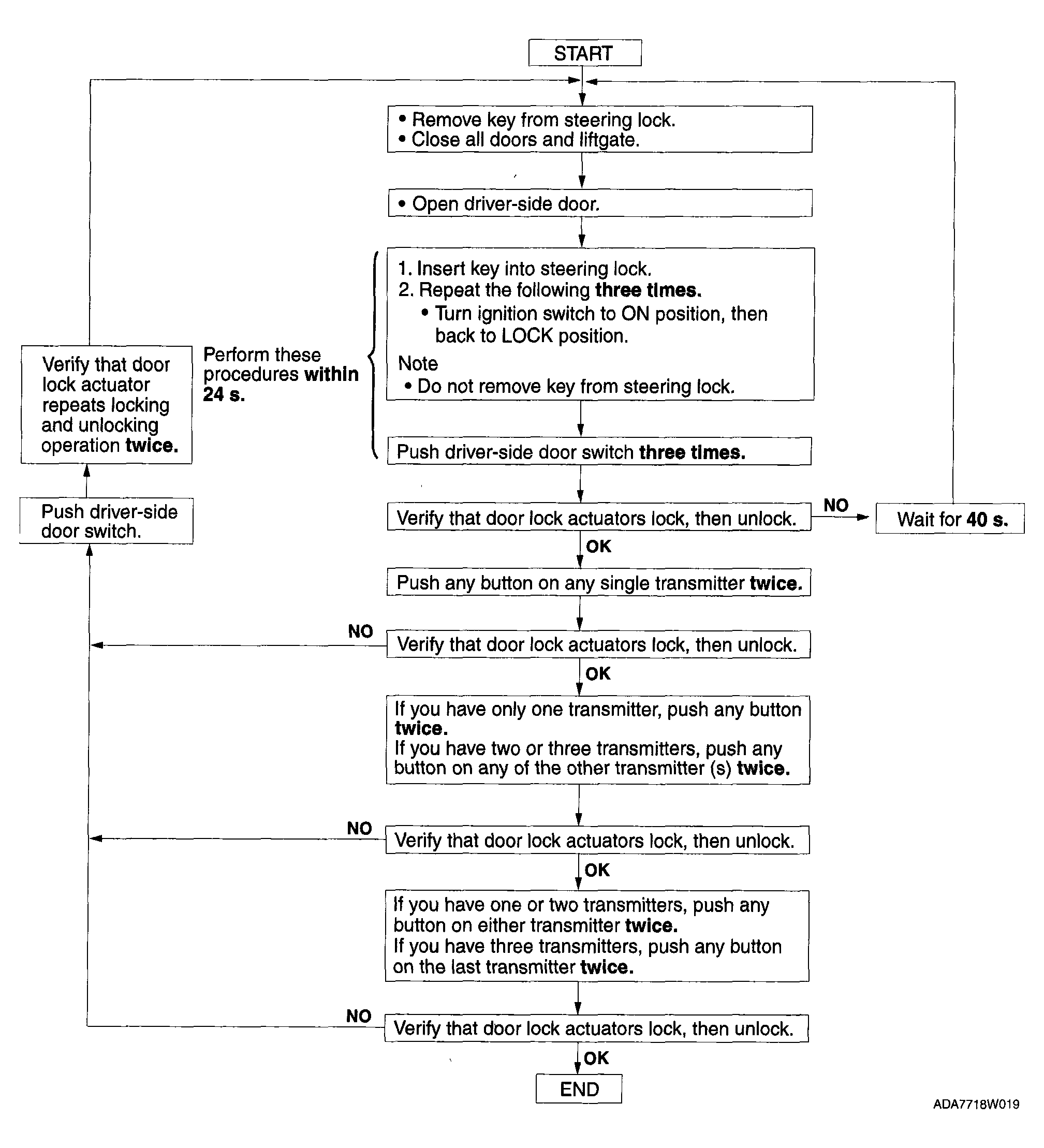

    Fig 1: Transmitter Id Code Registration [With Keyless Entry System] - Flow Chart
    G04564375Courtesy of MAZDA MOTORS CORP.
