Request Switch Inspection [With Advanced Keyless System]

Inspect for continuity between request switch terminals A and B.
- If not as specified, replace the request switch.

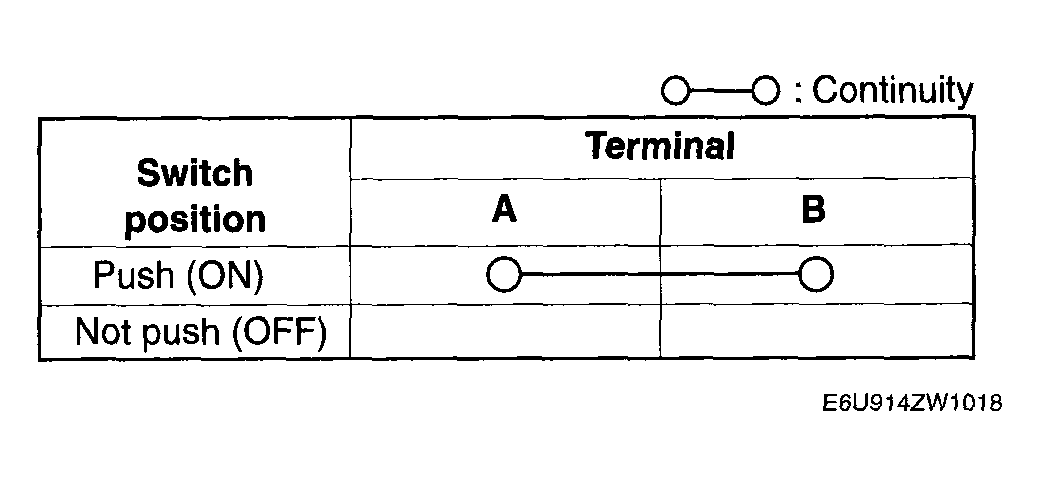

  Fig 1: Request Switch Terminals Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

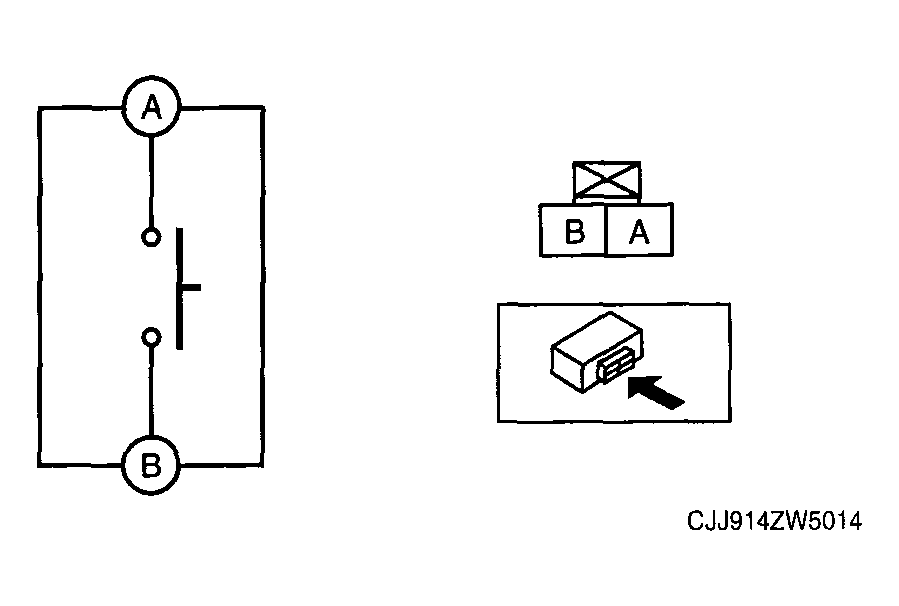

  Fig 2: Request Switch Connector Terminals A & B
  Courtesy of MAZDA MOTORS CORP.
