Joint Hose Installation Note

  1. Install the joint hose and clamp as shown in Fig 1 .
  2. Install the clamp between the spool and stopper without overlapping the stopper.

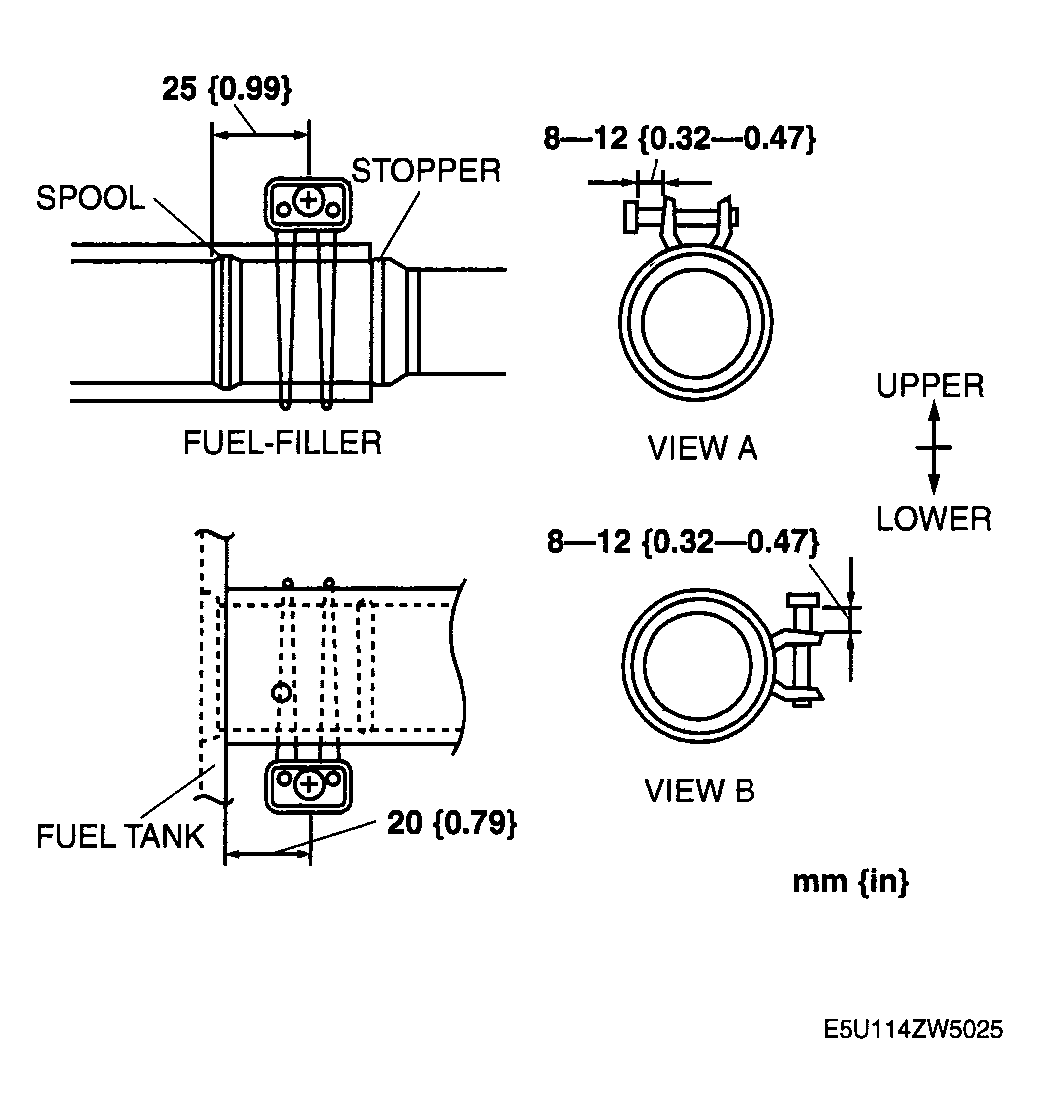

    Fig 1: Installing Joint Hose & Clamp
    G04317917Courtesy of MAZDA MOTORS CORP.
