Power Outer Mirror Switch Removal/Installation
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Remove the handle pull. (See DOOR TRIM DISASSEMBLY/ASSEMBLY .)
- Remove the armrest. (See DOOR TRIM DISASSEMBLY/ASSEMBLY .)
- Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)

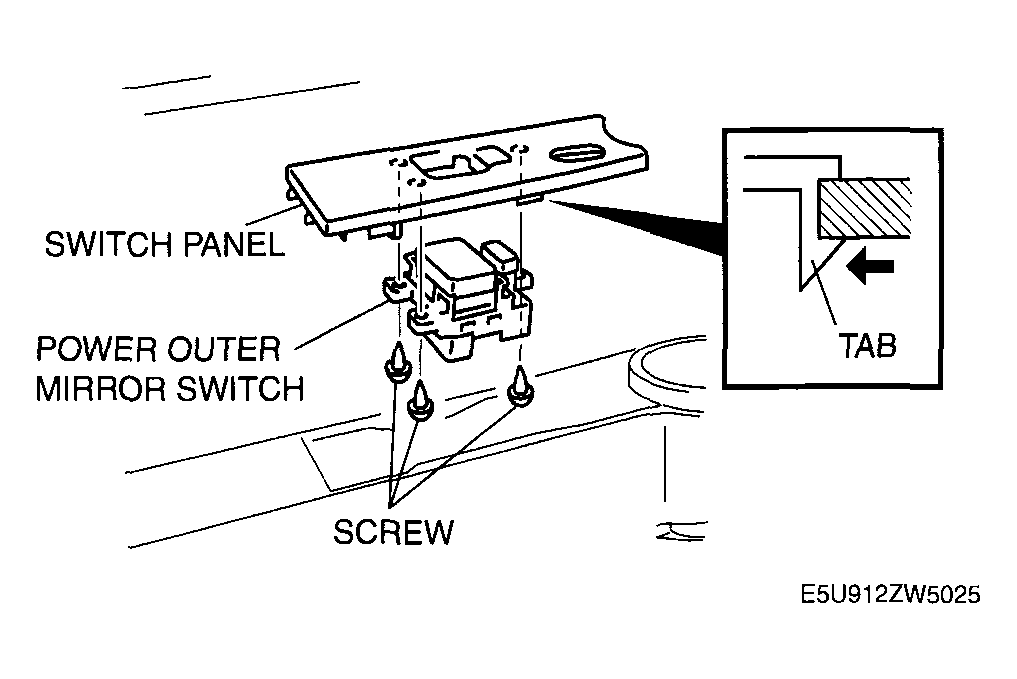

- Remove the switch panel from the door trim by depressing the tab.
- Remove the screws and the power outer mirror switch.
- Install in the reverse order of removal.
