Outer Mirror Glass Assembly Note

  1. Press area A of the mirror glass into the base to attach pin A.
  2. Press areas B of the outer mirror glass into the base to attach pins B.

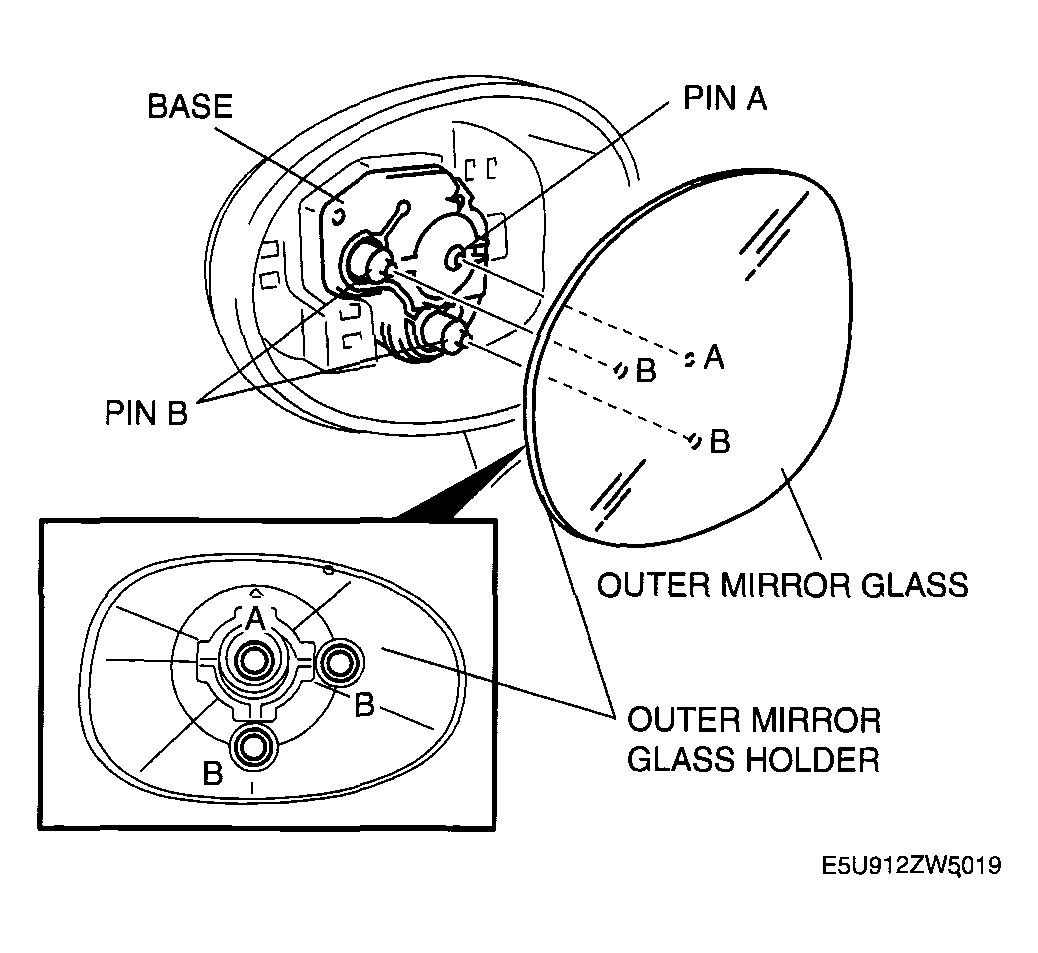

    Fig 1: Pressing Outer Mirror Glass Into Base
    G04323459Courtesy of MAZDA MOTORS CORP.
