Transmission/Transaxle SST

1. Mazda SST number
2. Global SST number

Example

1: 49 UN30 3009

2: 303-009

Fig 1: Identifying Service Tools

Courtesy of MAZDA MOTORS CORP.

Crankshaft damper remover

1: 49 0378 4000 2: - Oil pressure gauge set	1: 49 B019 901B 2: - Oil pressure gauge	1: 49 HD64 406A 2: - Adapter
1: 49 0877 435 2: - Wrench	1: 49 S120 440 2: - Mainshaft holder	1: 49 0813 215A 2: - Dowel puller and oil pump puller
1: 49 S019 005 2: - Oil seal puller	1: 49 W027 003 2: - Bearing installer	1: 49 S019 006 2: - Oil seal installer
1: 49 G030 797 2: - Handle	1: 49 E017 5A0 2: - Engine support	1: 49 E011 1A0 2: - Ring gear brake set
1: 49 0259 770B 2: 205 Flare nut wrench	1: 49 SE01 310A 2: - Clutch disc centering tool	1: 49 1285 071 2: - Needle bearing puller
1: 49 B025 004 2: - Installer, dust seal	1: 49 B025 0A0 2: - Dust seal Installer set	1: 49 UN30 8157 2: 308-157 Bush installer

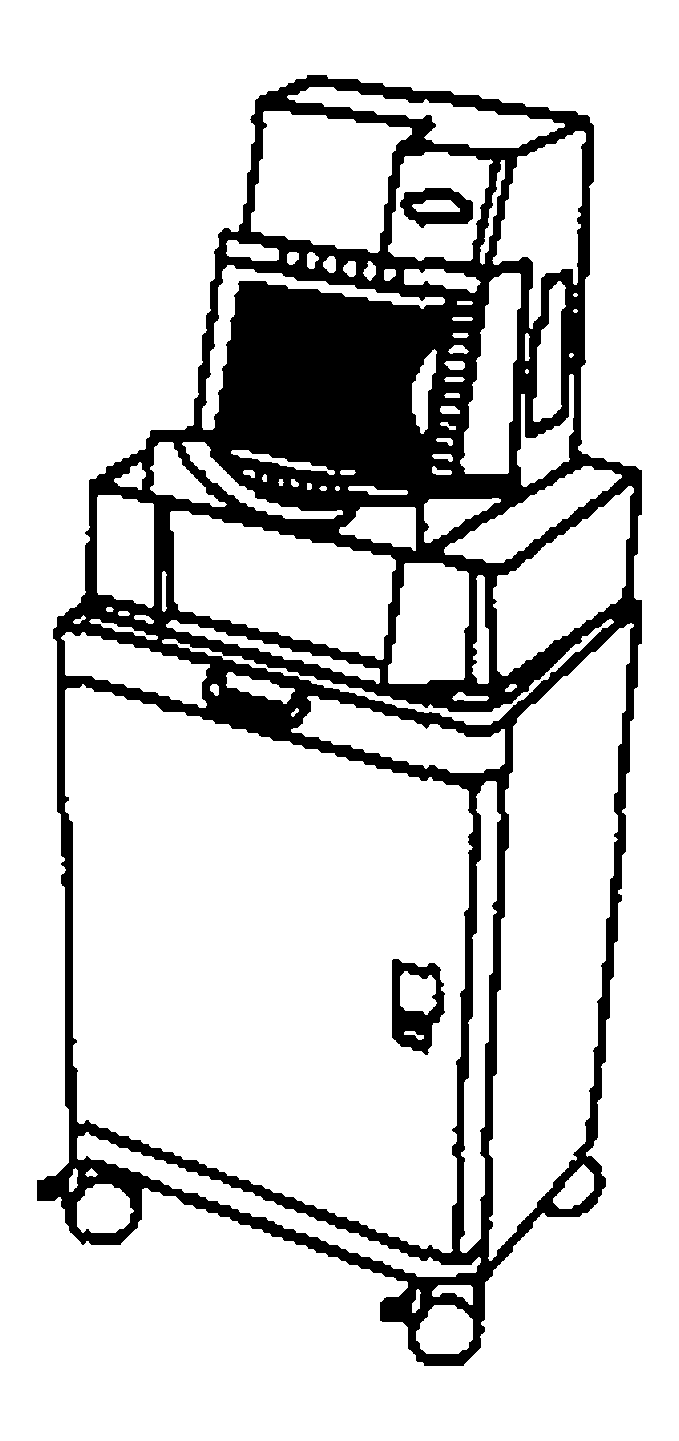

1: 49 UN20 5153 2: 205-153 Handle	1: 49 0259 440 2: - Mainshaft holder	1: - 2: 418-FS475 WDS
