Steering Gear And Linkage Disassembly: Notes

CAUTION:
  • Place copper plates, rag, or similar material in a vise, when securing the mounting bracket portion of the steering gear.
  1. Disassemble in the order indicated in Fig 1.

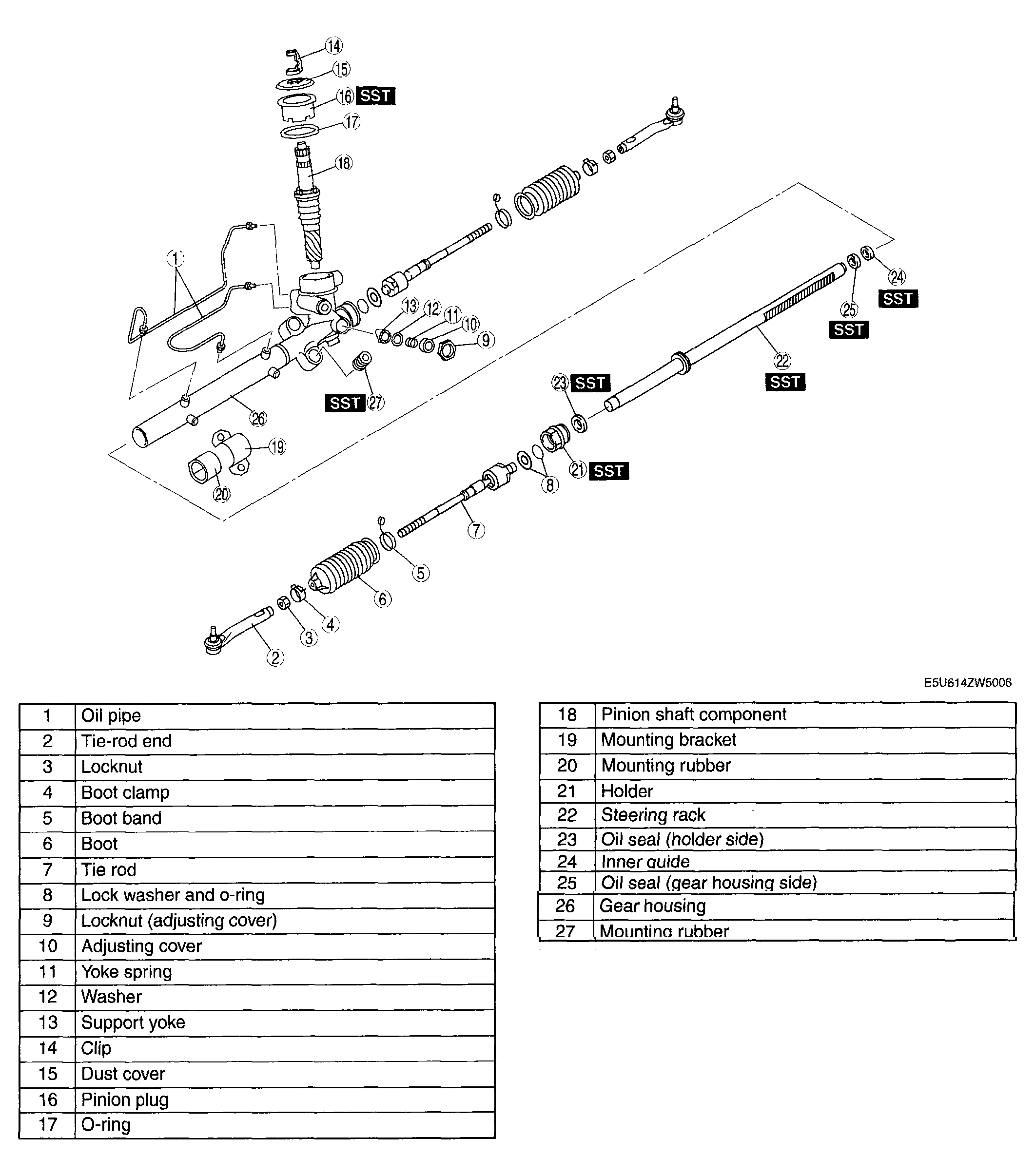

    Fig 1: Disassembling View Of Steering Gear & Linkage
    G04318784Courtesy of MAZDA MOTORS CORP.
