Power Steering Oil Pump Disassembly/Assembly: Notes

NOTE:

• The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.

1. Disassemble in the order indicated in Fig 1 .
2. Assemble in the reverse order of disassembly.

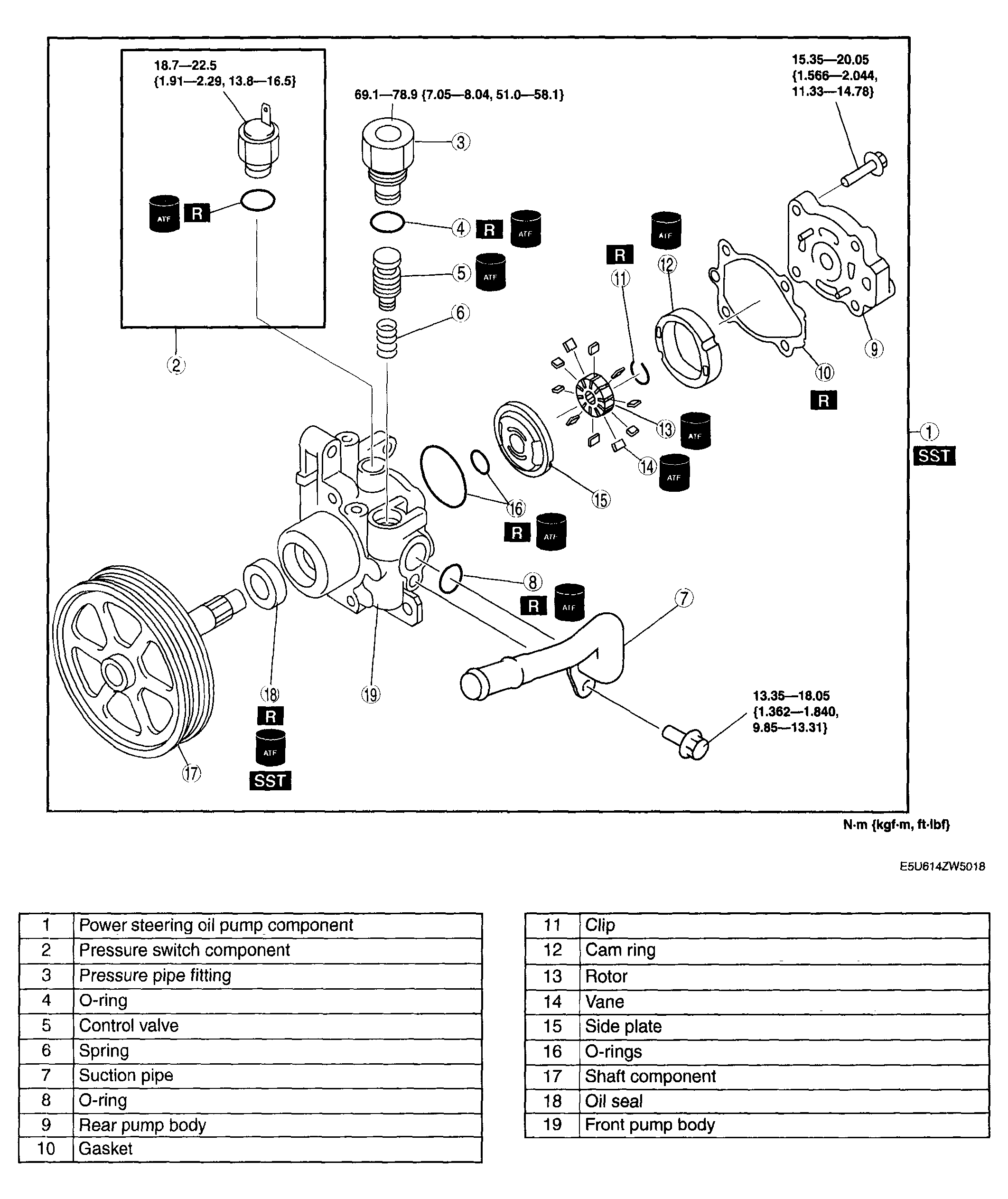

Fig 1: Exploded View Of Power Steering Oil Pump With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
