Repair Procedure
- Most repair operations begin with an overview illustration. It identifies the components, shows how the parts fit together, and describes visual part inspection. However, only removal/installation procedures that need to be performed methodically have written instructions.
- Expendable parts, tightening torques, and symbols for oil, grease, and sealant are shown in Fig 1
. In addition, symbols indicating parts requiring the use of special service tools or equivalent are also shown.

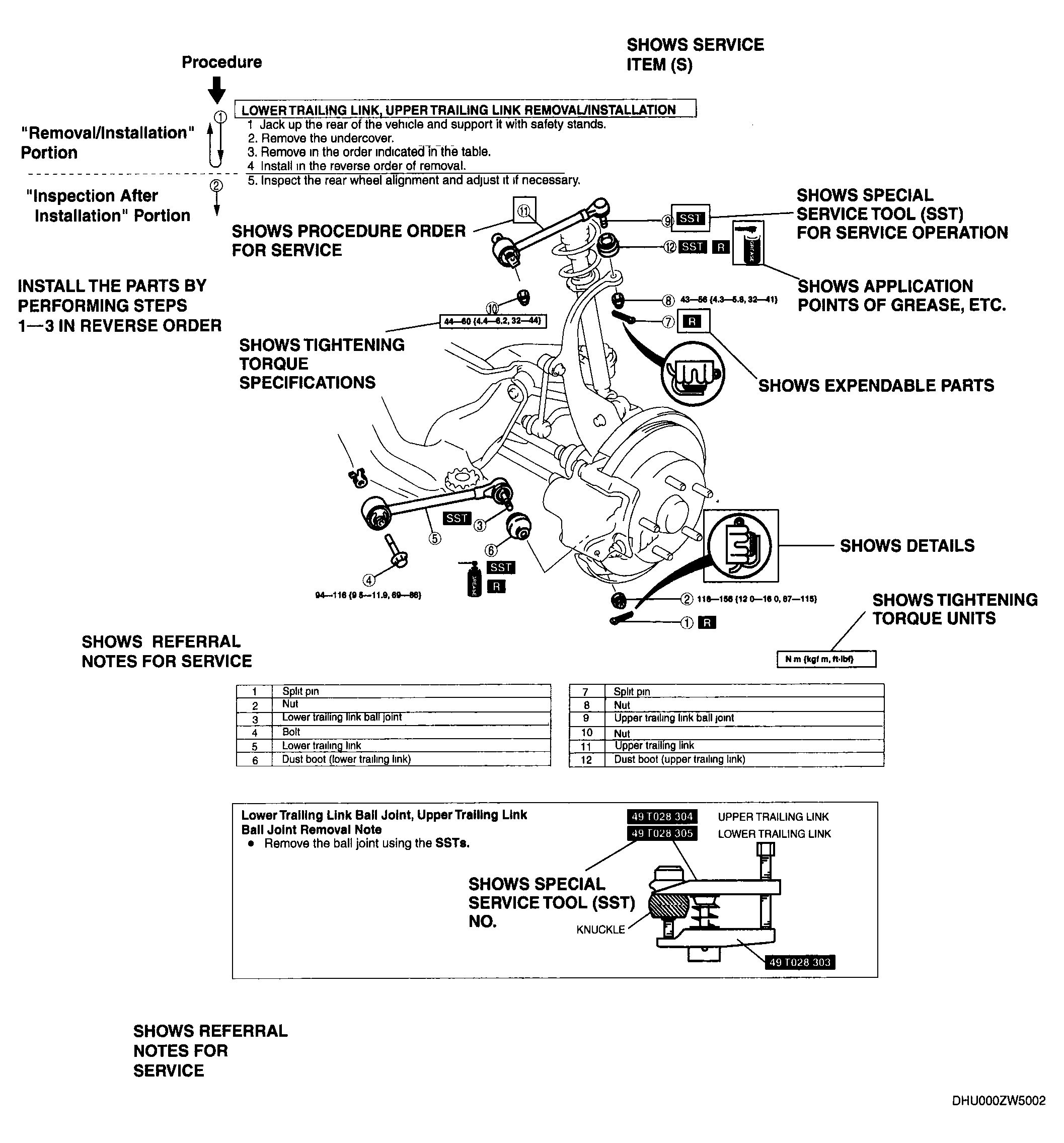

- Procedure steps are numbered and the part that is the main point of that procedure is shown in Fig 1
with the corresponding number. Occasionally, there are important points or additional information concerning a procedure. Refer to this information when servicing the related part.
