Electrical System: Terminals: Inspection

Pull lightly on individual wires to verify that they are secured in the terminal.

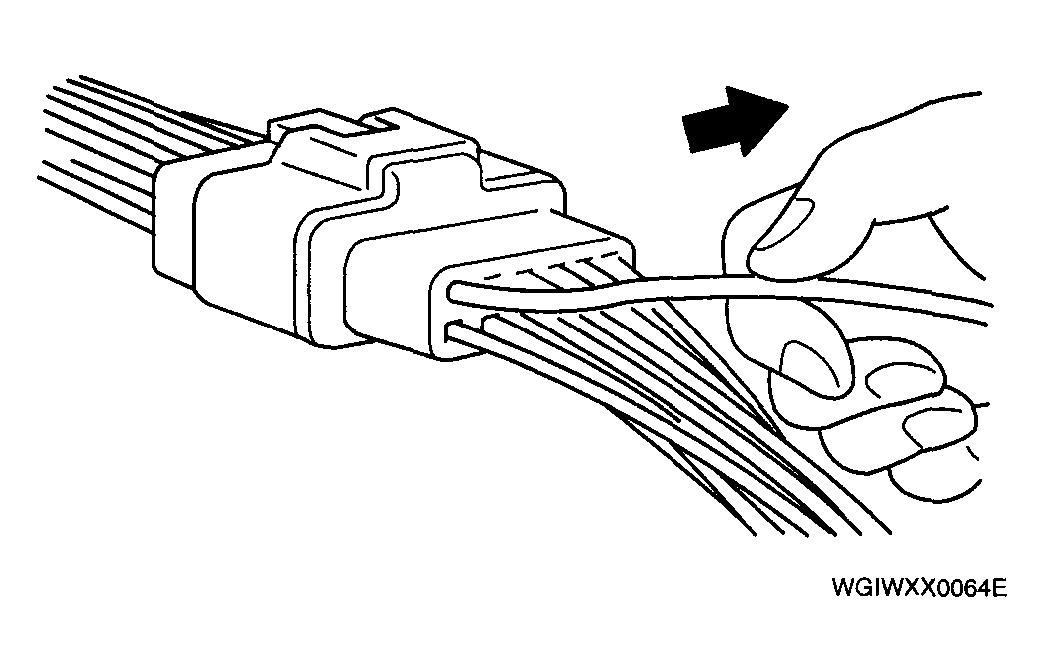

Fig 1: Inspecting Connector Terminal Wires

G04317650

Courtesy of MAZDA MOTORS CORP.
