PCM Adaptive Memory Production, EGR, HO2S heater, HO2S, TWC, and EVAP System Repair Verification Drive Mode

Start the engine and warm it up completely.
Clear the DTC from the PCM memory using the WDS or equivalent.
Verify the following conditions and correct if necessary:
- All accessory loads (A/C, headlights, blower fan, rear window defroster) are off.
Verify that all of the following PIDs are within the following specifications. All PIDs must be within specifications from Step 5 to Step 6.
- BARO: above 72.2 kPa {542 mmHg, 21.3 inHg}
- IAT: 5-35°C {41-95°F}
- FTL: 15-85%
- VPWR: above 10.9 V

With the vehicle stopped, race the engine at the engine speed indicated, and then drive the vehicle as shown in Fig 1 . The driving conditions before driving at constant speed are not specified. If possible, monitor RPM PID for engine speed during this procedure.

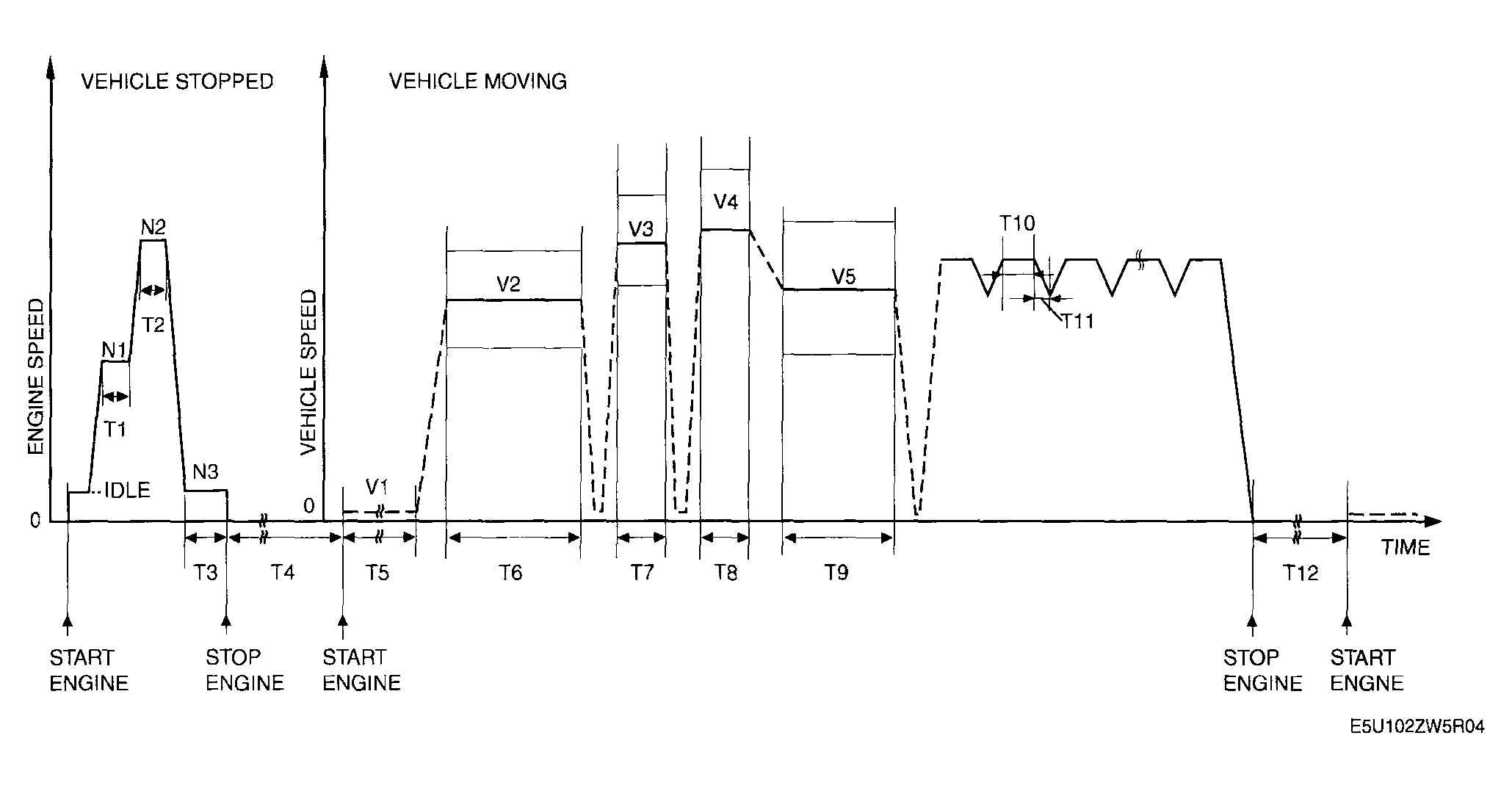

Fig 1: PCM Adaptive Memory Production, EGR, HO2S heater, HO2S, TWC, and EVAP System Repair Verification Drive Mode Graph

Courtesy of MAZDA MOTORS CORP.

ENGINE SPEED REFERENCE TABLE

Step	Time	Engine speed (rpm)	Vehicle speed (km/h {mph})	Vehicle condition
1	T1: More than 15 s	N1: 2,500-3,500	0 {0}	-
2	T2: More than 15 s	N2 : 4,000-5,000	0 {0}	-
3	T3: More than 60 s	N3 : Idle	0 {0}	Idle the engine after the cooling fan has stopped
4	T4: More than 5 h	0	0 {0}	Keep the ignition switch off
5	T5: More than 5 min	Idle	V1: 0 {0}	-
6	T6: 5 min	-	V2: 65-80 {40-50}	-
7	T7: 1 min	-	V3: 81-90 (50-56}	MT: 5TH AT: D range
8	T8: 1 min	-	V4 : Above 89 {55}	MT: 5TH AT: D range
9	T9: 3 min	-	V5 : 72-89 {45-55}	MT: 5TH AT: D range
10	T10: Approx. 10 s	Above 2,500	-	-
11	T11: Approx. 10 s	-	-	Decelerate by engine braking only (10 times)
12	T12: More than 5.5 h	0	0 {0}	Keep the ignition switch off

Turn the ignition switch off.
Access the ON BOARD SYSTEM READINESS to verify the OBD monitoring status.
- If completed, all of the OBD monitoring status items change from non-completed to completed.
- If not completed, turn the ignition switch off, then perform the applicable specific drive mode for any monitoring item that was not in the detection condition.
Access the DIAGNOSTIC MONITORING TEST RESULTS to verify the monitor results.
- If detected values are not within specification, repair has not been completed.
