Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION  .)
  2. Inspect the following wiring harness for open or short circuit (continuity Inspection).

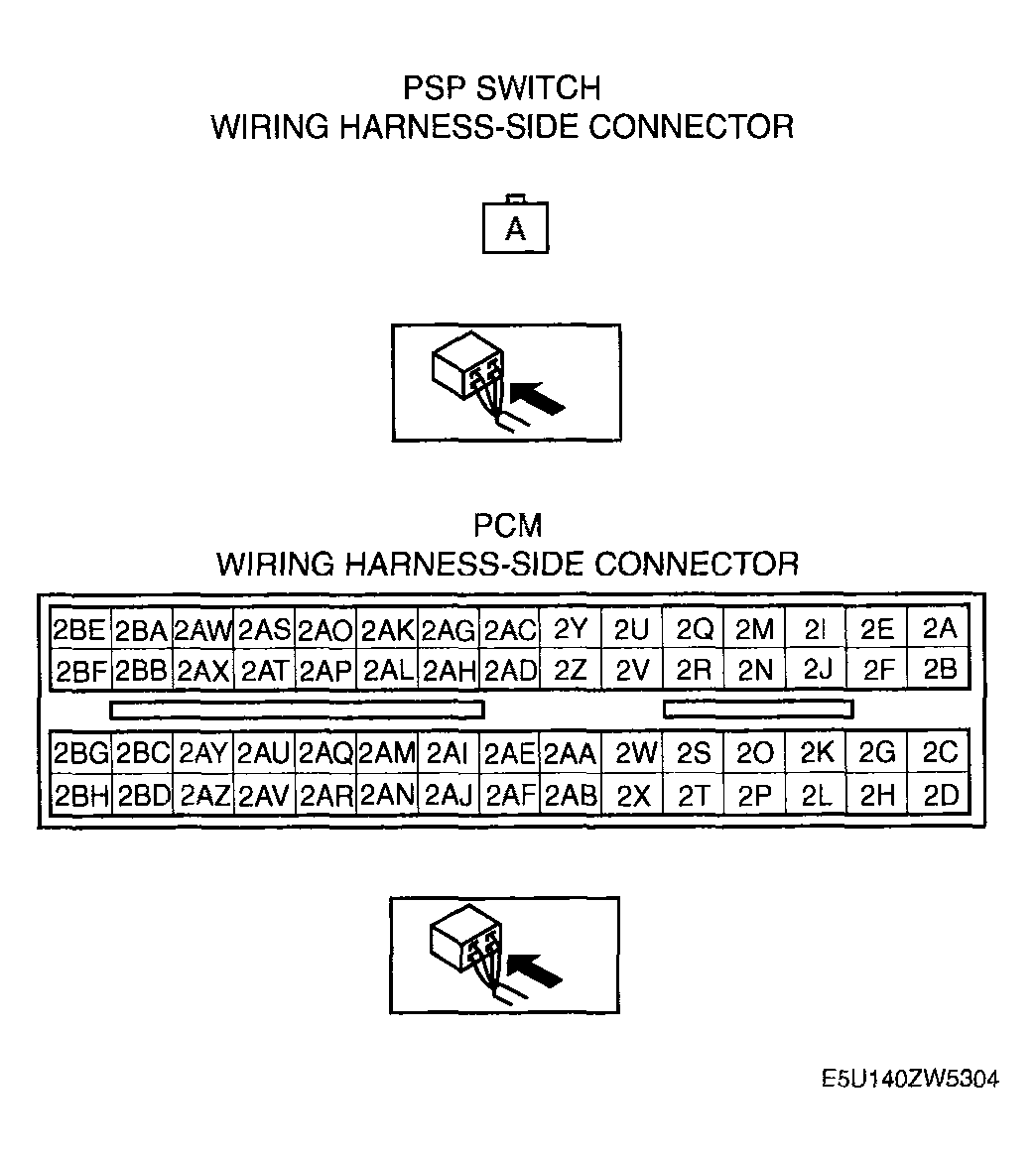

    Fig 1: Identifying PSP Switch & PCM Harness Side Connectors
    G04323022Courtesy of MAZDA MOTORS CORP.
