Instrument Cluster Disassembly/Assembly

CAUTION:
  • Do not drop the instrument cluster or damage the printed board. This will lead to a system malfunction.
  1. Disassemble in the order indicated in Fig 1 .

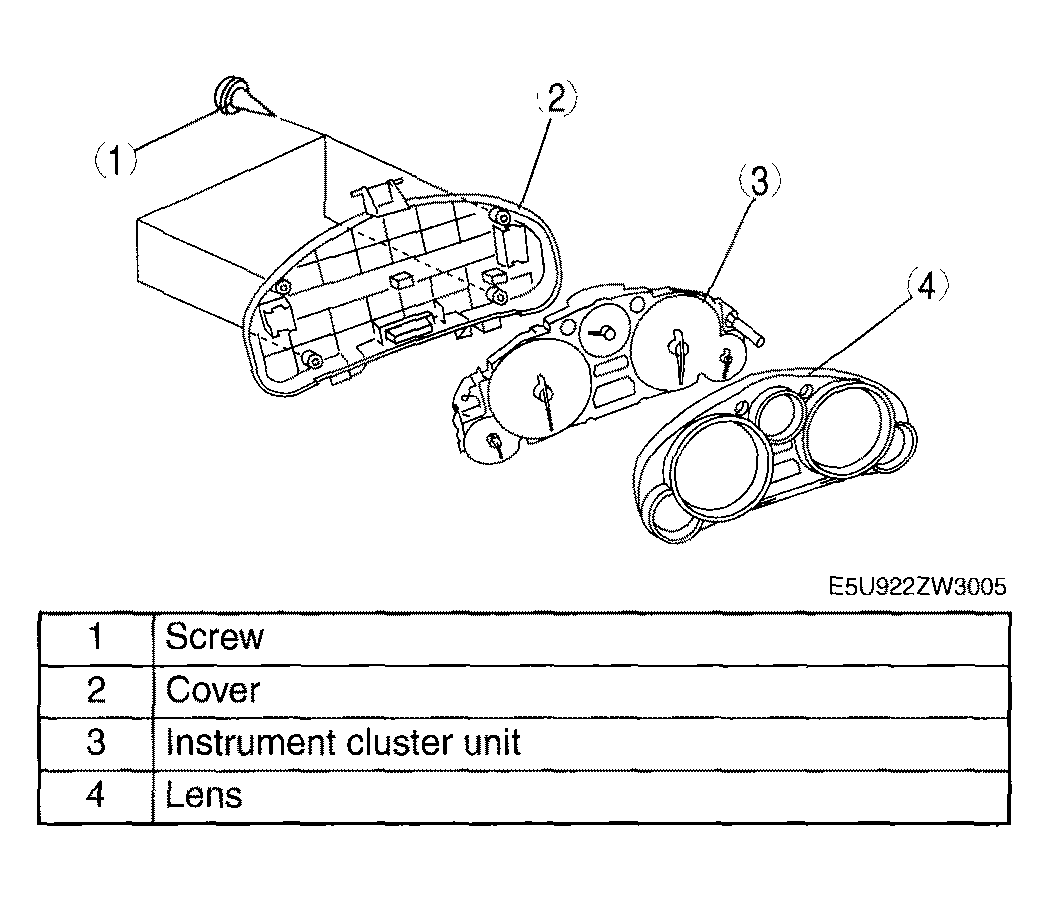

    Fig 1: Exploded View Of Instrument Cluster Components
    G04323823Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
