Horn Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Slightly bend back the under cover.
  3. Remove in the order indicated in Fig 1 .

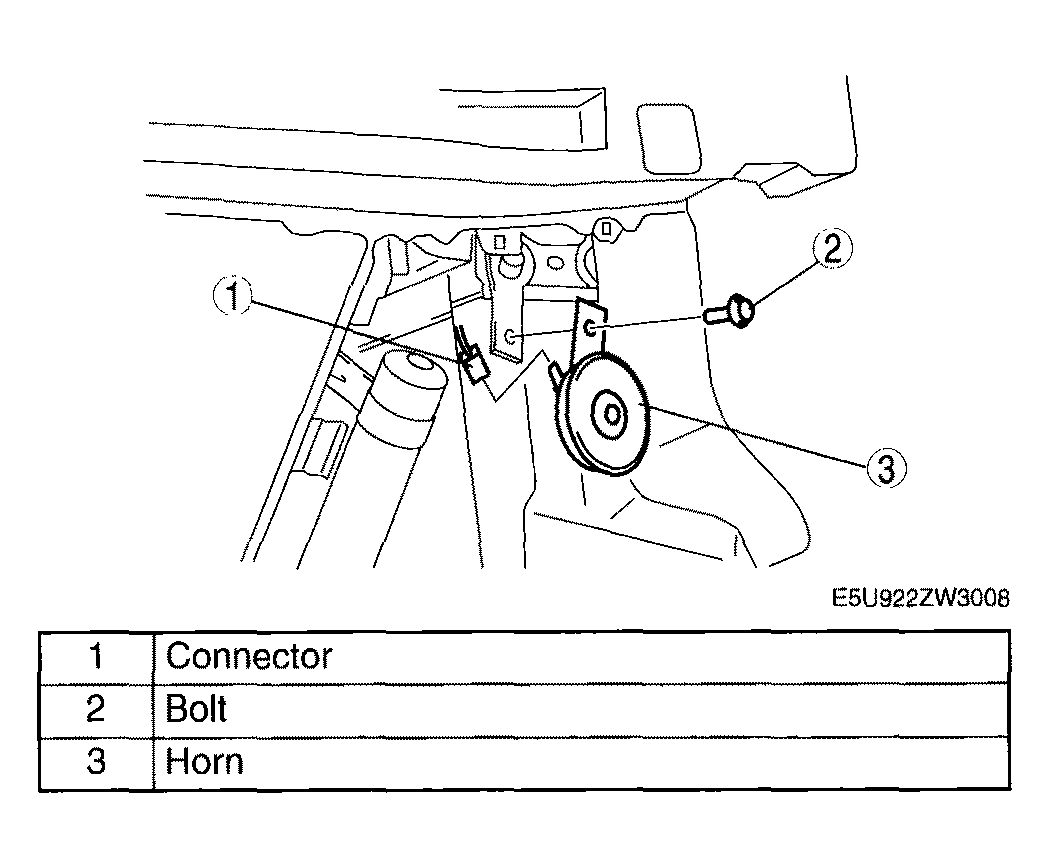

    Fig 1: Removing/Installing Horn Components
    G04323880Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
