Standard (Reference Value)
STANDARD (REFERENCE VALUE) TABLE

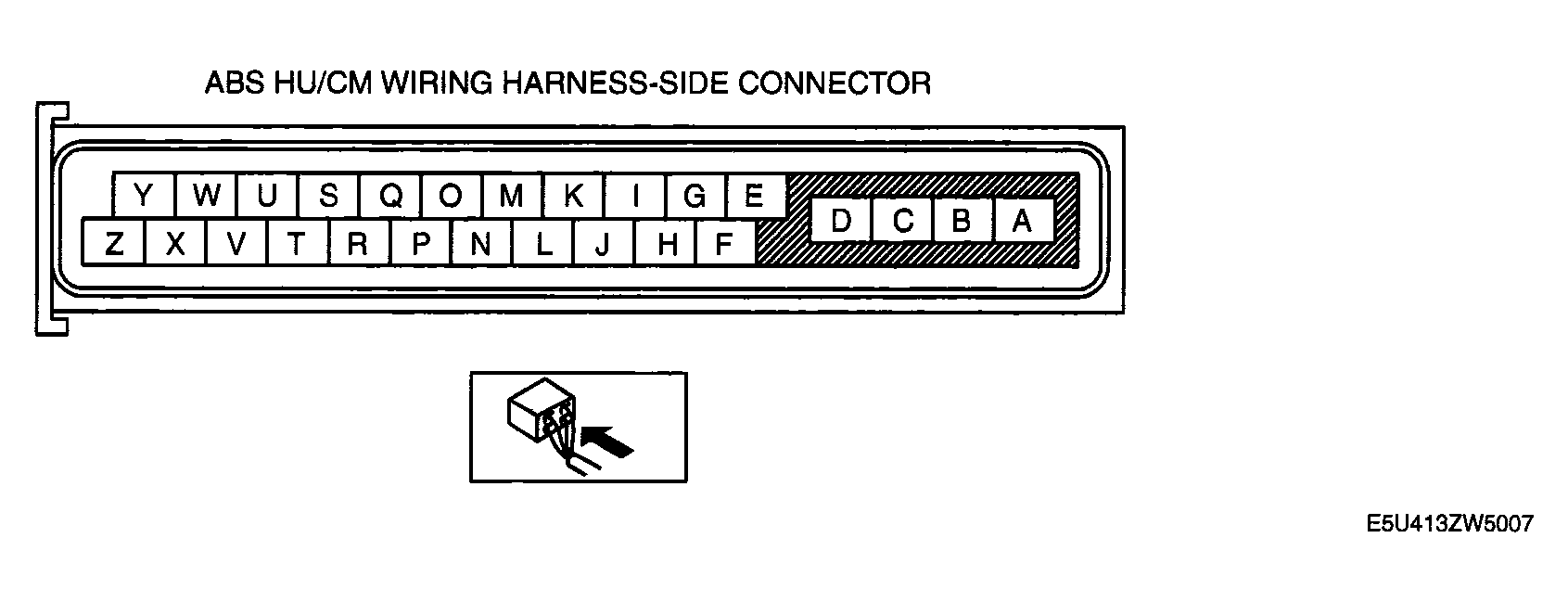

| Terminal | Signal name | Connected to | Measured item | Measured terminal (measured condition) | Standard | Inspection Item(s) |
|---|---|---|---|---|---|---|
| A | Ground (ABS motor) | Ground point | Continuity | A-ground point | Continuity detected |
|
| B | Power supply (ABS motor operation) | Battery | Voltage | Under any condition | B+ |
|
| C | Power supply (solenoid) | Battery | Voltage | Under any condition | B+ |
|
| D | Ground (ABS system) | Ground point | Continuity | D-ground point | Continuity detected |
|
| E | LF wheel-speed sensor (ground) | LF ABS wheel-speed sensor | Continuity | E-LF ABS wheel-speed sensor connector terminal B | Continuity detected |
|
| F | LF wheel-speed sensor (single) | LF ABS wheel-speed sensor | Continuity | F-LF ABS wheel-speed sensor connector terminal A | Continuity detected |
|
| G | LR wheel-speed sensor (signal) | LR ABS wheel-speed sensor | Continuity | G-LR ABS wheel-speed sensor connector terminal A | Continuity detected |
|
| H | LR wheel-speed sensor (ground) | LR ABS wheel-speed sensor | Continuity | H-LR ABS wheel-speed sensor connector terminal B | Continuity detected |
|
| I | RR wheel-speed sensor (signal) | RR ABS wheel-speed sensor | Continuity | I-RR ABS wheel-speed sensor connector terminal A | Continuity detected |
|
| J | Power supply (system) | Ignition switch | Voltage | Ignition switch at ON | B+ |
|
| Ignition switch is off. | 1 V or less | - | ||||
| K | - | - | - | - | - | - |
| L | RR wheel-speed sensor (ground) | RR ABS wheel-speed sensor | Continuity | L-RR ABS wheel-speed sensor connector terminal B | Continuity detected |
|
| M | RF wheel-speed sensor (signal) | RF ABS wheel-speed sensor | Continuity | M-RF ABS wheel-speed sensor connector terminal A | Continuity detected |
|
| N | Brake switch | Brake switch | Voltage | N-brake switch (Brake pedal depressed) | B+ |
|
| Y-brake switch (Brake pedal not depressed) | 1 V or less | |||||
| O | RF wheel-speed sensor (ground) | RF ABS wheel-speed sensor | Continuity | O-RF ABS wheel-speed sensor connector terminal B | Continuity detected |
|
| P | - | - | - | - | - | - |
| Q | - | - | - | - | - | - |
| R | - | - | - | - | - | - |
| S | - | - | - | - | - | - |
| T | - | - | - | - | - | - |
| U | - | - | - | - | - | - |
| V | - | - | - | - | - | - |
| W | - | - | - | - | - | - |
| X | - | - | - | - | - | - |
| Y | CAN_L | DLC-2 (CAN_L) | Continuity | Y-DLC-2 terminal CAN_L. | Continuity detected |
|
| Z | CAN_H | DLC-2 (CAN_H) | Continuity | Z-DLC-2 terminal CAN_H | Continuity detected |
|
