Rearview Mirror Removal/Installation

  1. Remove the cover.
    Fig 1: Removing Cover
    G04323464Courtesy of MAZDA MOTORS CORP.
  2. Depress the clip, and then remove the rearview mirror by pulling upward.
  3. Install in the reverse order of removal.

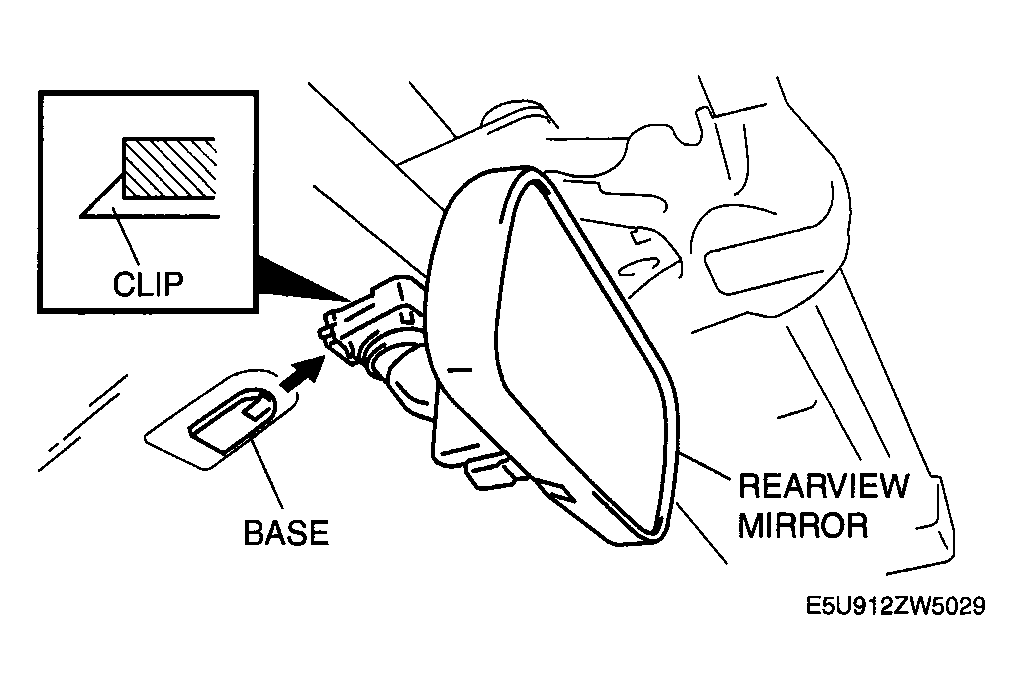

    Fig 2: Removing Rearview Mirror
    G04323465Courtesy of MAZDA MOTORS CORP.
