Passenger's Side

  1. Verify that the continuity between the power window main switch terminals is as indicated in Fig 1 .
    Fig 1: Power Window Main Switch Continuity Table
    G04323446Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in Fig 1 , replace the power window main switch.
  2. Apply battery positive voltage to terminal I, and connect the ground to terminal J, and then verify that the light emitting diode illuminates.
    • If not as specified, replace the power window main switch.

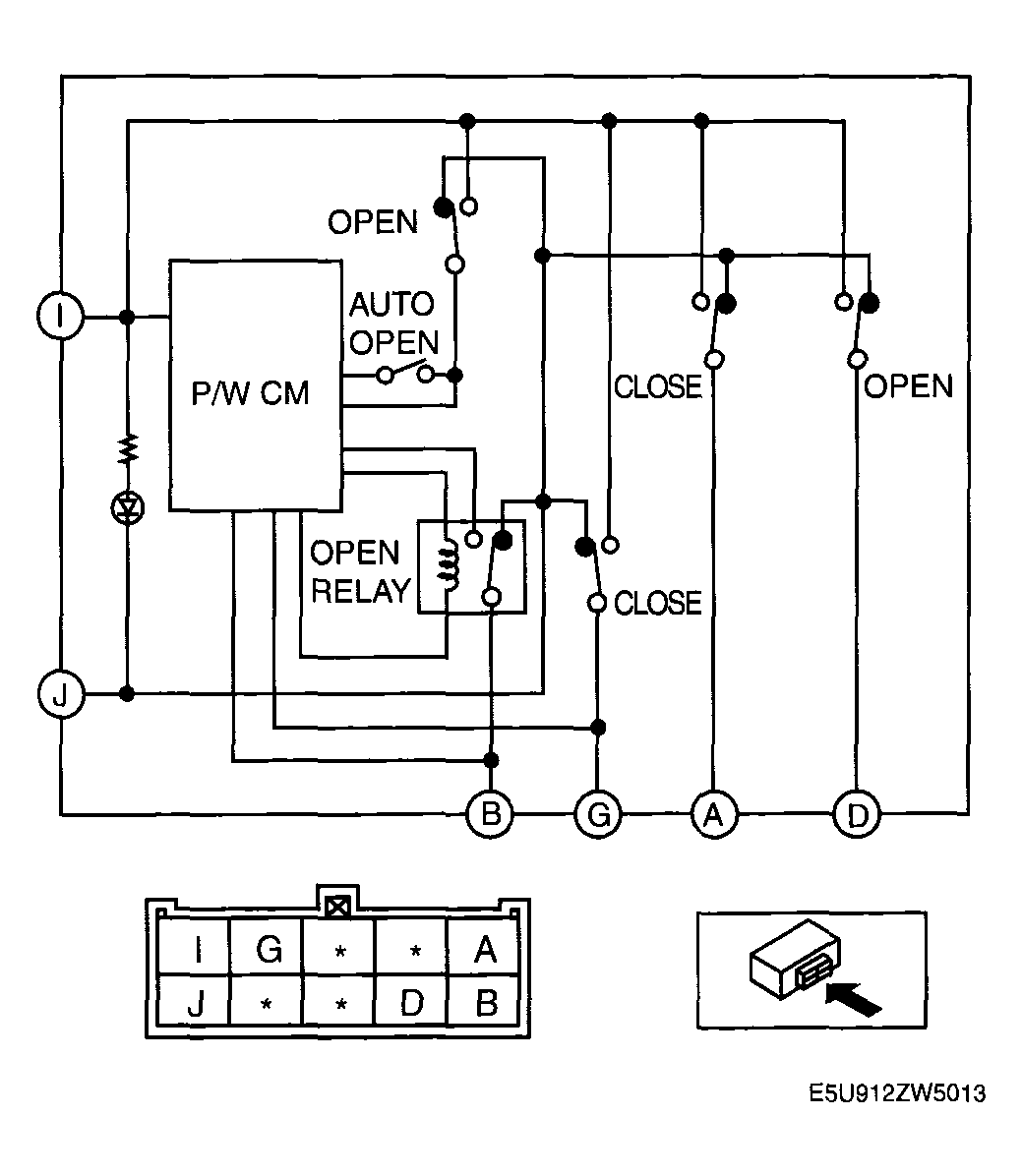

    Fig 2: Power Window Main Switch Circuit Diagram
    G04323447Courtesy of MAZDA MOTORS CORP.
