Power Outer Mirror Switch Inspection

  1. Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.
    • If not as specified, replace the power outer mirror switch.

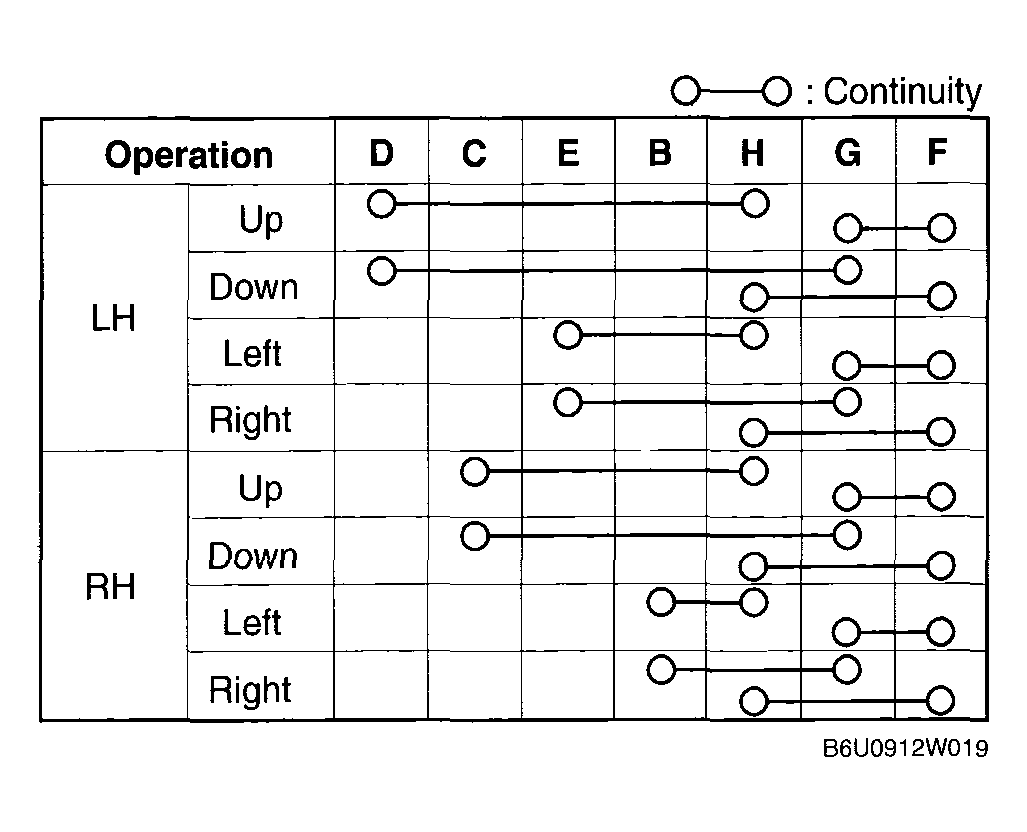

    Fig 1: Power Outer Mirror Continuity Table
    G04323462Courtesy of MAZDA MOTORS CORP.

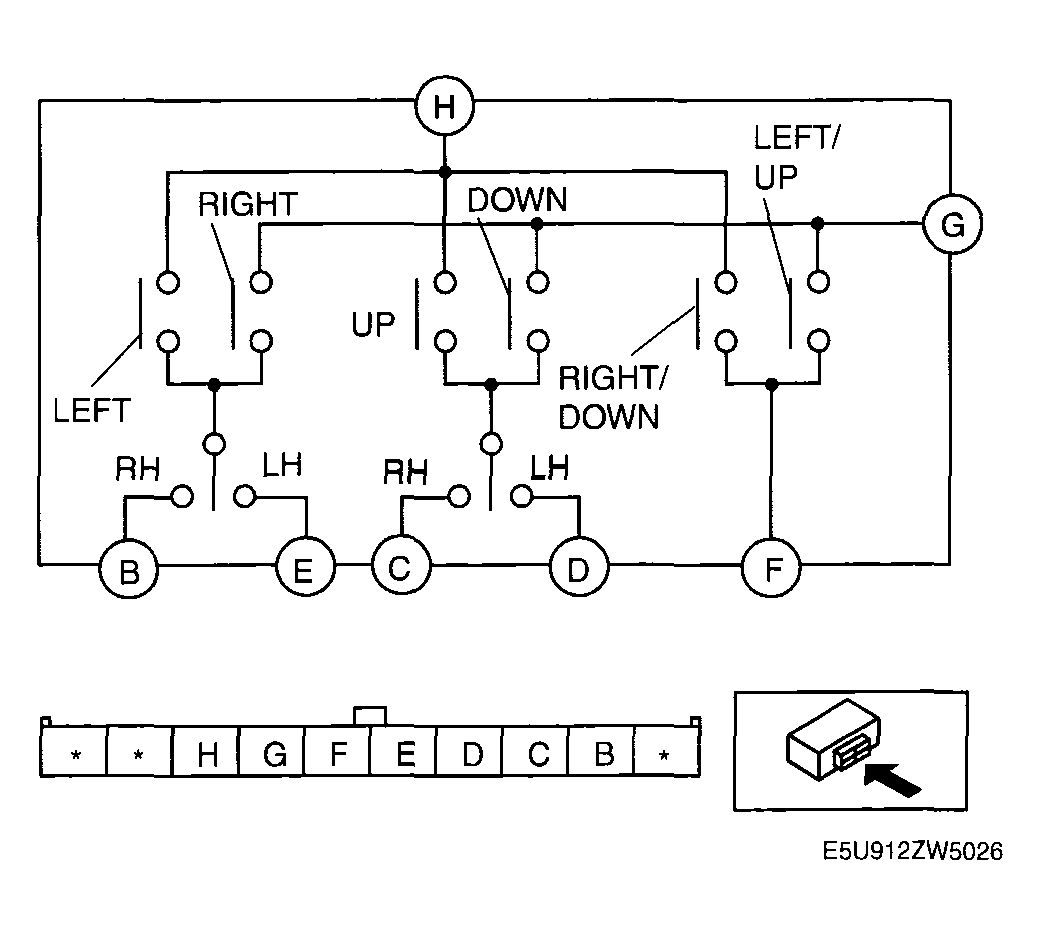

    Fig 2: Power Outer Mirror Switch Circuit Diagram
    G04323463Courtesy of MAZDA MOTORS CORP.
