Trunk Lid Opener Cancel Switch Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Squeeze the tabs of the trunk lid opener cancel switch and pull it forward to remove it.

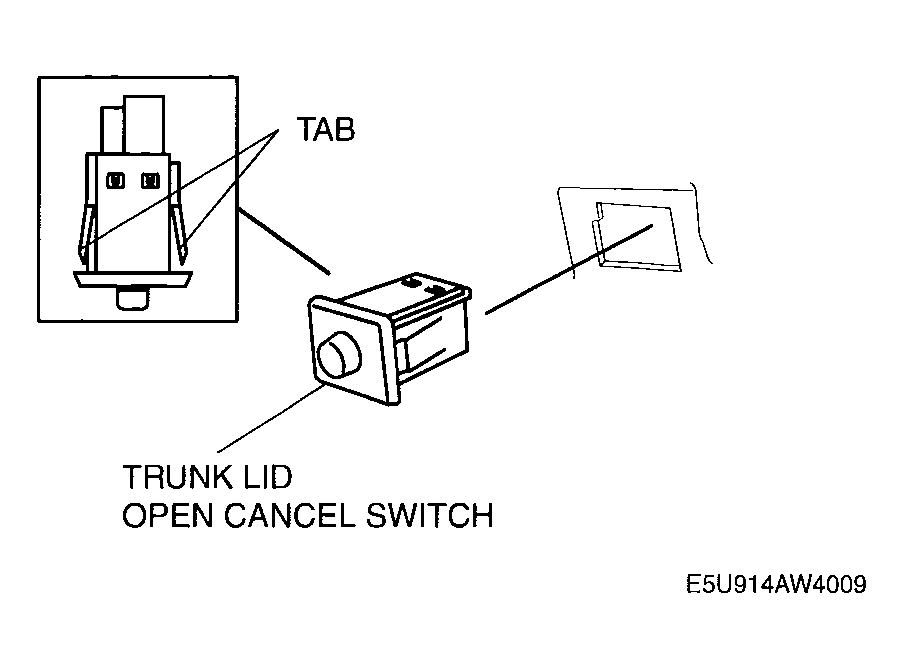

    4. Fig 1: Removing/Installing Trunk Lid Opener Cancel Switch
    G04323527Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the trunk lid opener cancel switch connector.
  5. Remove the trunk lid opener cancel switch.
  6. Install in the reverse order of removal.
