Trunk Lid Opener Switch Inspection

  1. Remove the trunk lid open switch.
  2. Inspect for continuity between the trunk lid open switch terminals.
    • If not as specified, replace the trunk lid open switch.

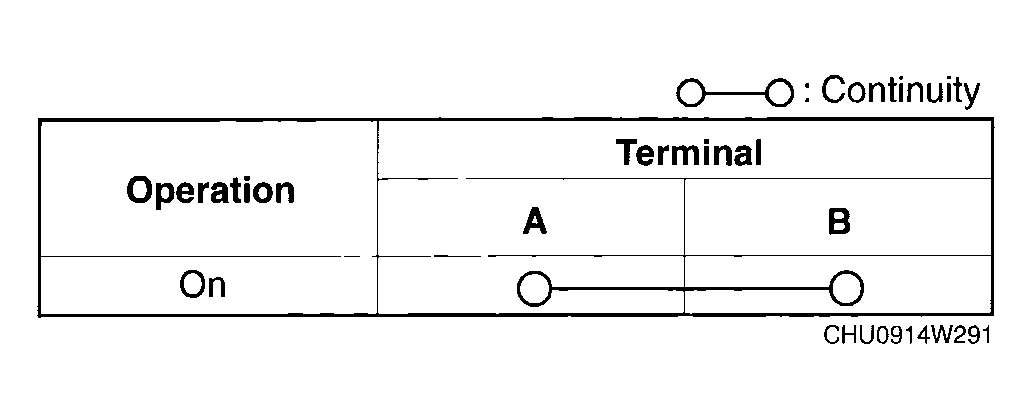

    Fig 1: Trunk Lid Opener Switch Continuity Table
    G04323524Courtesy of MAZDA MOTORS CORP.
    Fig 2: Inspecting Trunk Lid Opener Switch
    G04323525Courtesy of MAZDA MOTORS CORP.
