Trunk Lid Opener Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Detach the rod.
  4. Disconnect the trunk lid opener connector and the trunk compartment light connector.
  5. Remove the bolts, then remove the trunk lid opener.

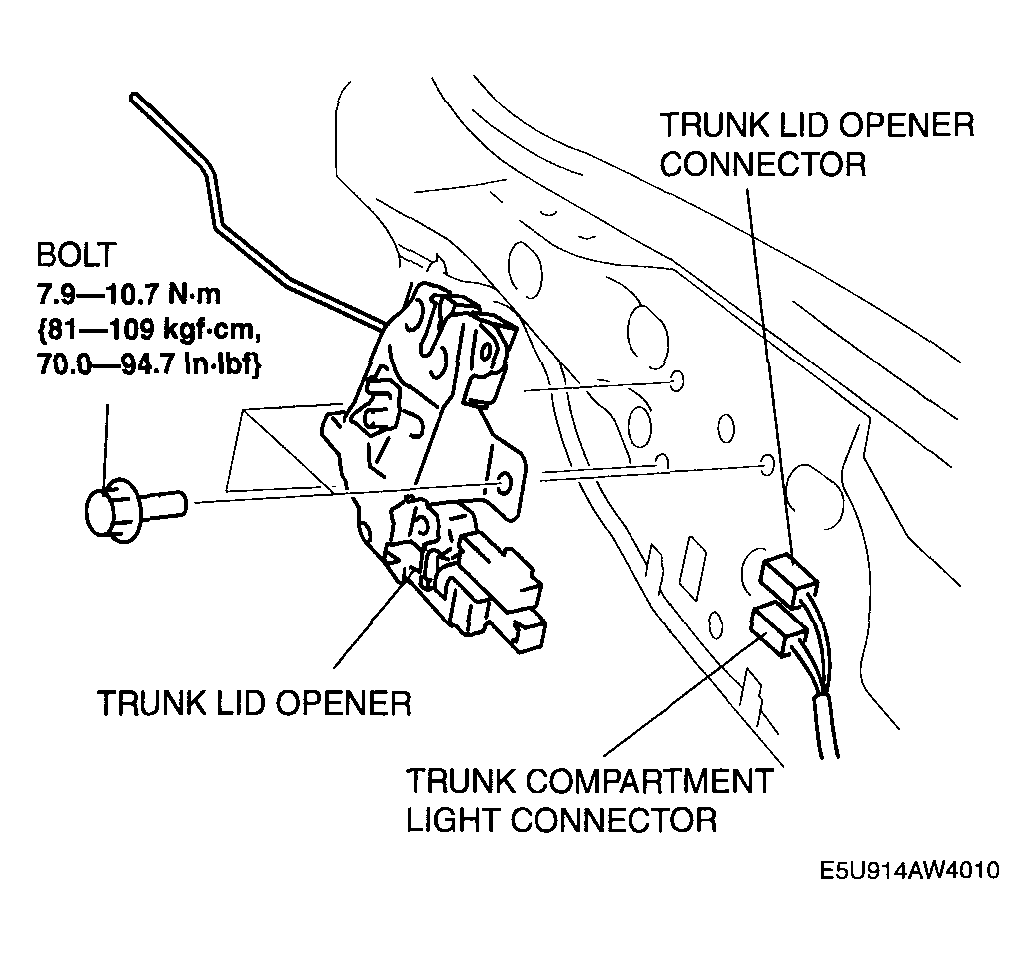

    6. Fig 1: Removing/Installing Trunk Lid Opener With Torque Specifications
    G04323518Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
