Trunk Lid Opener Cancel Switch Inspection

  1. Remove the trunk lid open cancel switch.
  2. Inspect for continuity between the trunk lid open cancel switch terminals.
    • If not as specified, replace the trunk lid open cancel switch.

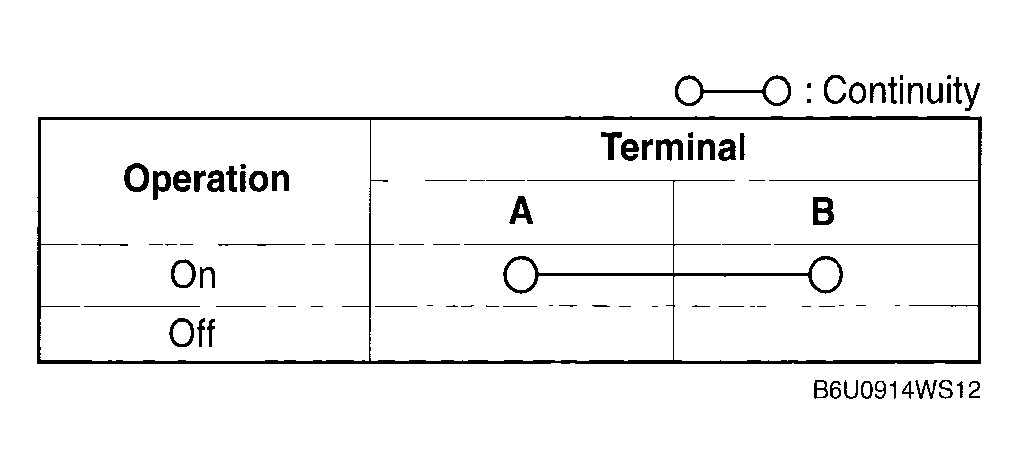

    Fig 1: Trunk Lid Opener Cancel Switch Continuity Table
    G04323528Courtesy of MAZDA MOTORS CORP.

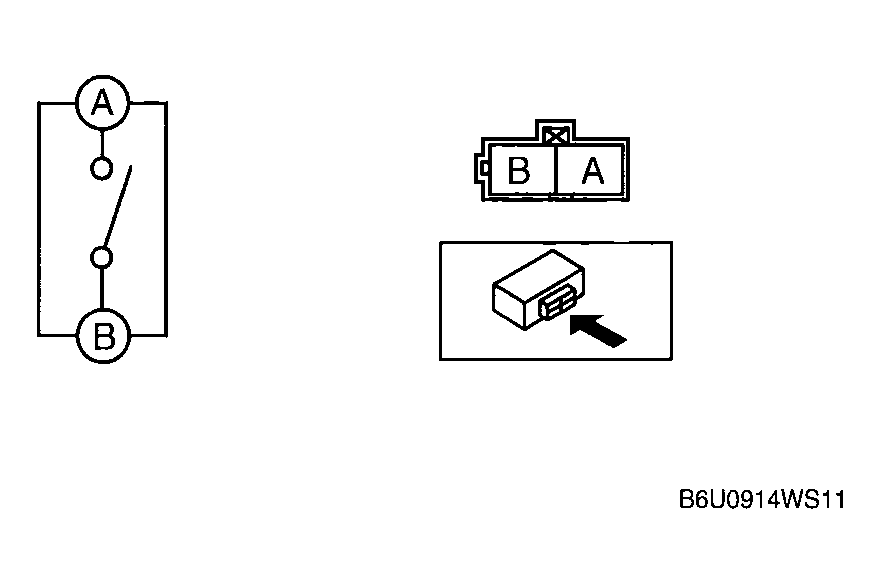

    Fig 2: Inspecting Trunk Lid Opener Cancel Switch
    G04323529Courtesy of MAZDA MOTORS CORP.
