Trunk Key Cylinder Switch Inspection

  1. Remove the trunk key cylinder switch.
  2. Inspect for continuity between the trunk key cylinder switch terminals.
    • If not as specified, replace the trunk key cylinder.

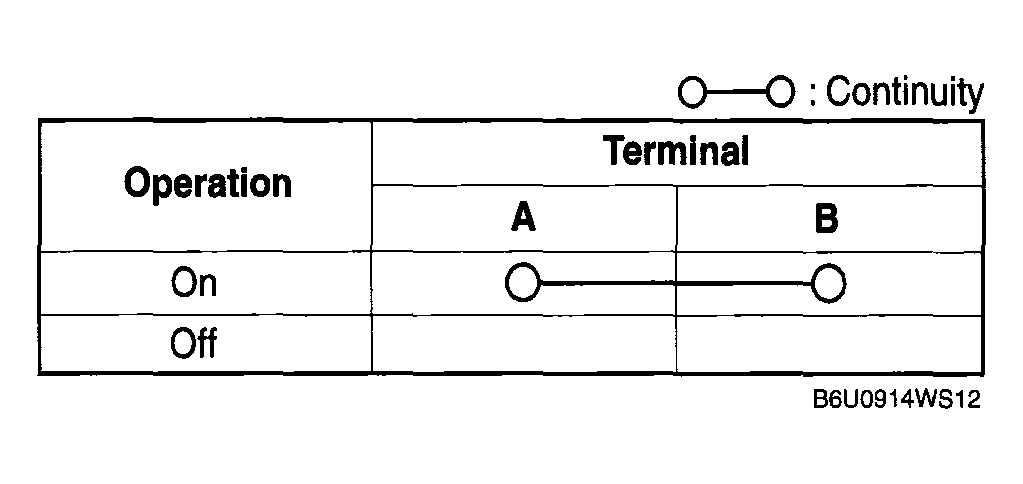

    Fig 1: Trunk Key Cylinder Switch Continuity Table
    G04323521Courtesy of MAZDA MOTORS CORP.

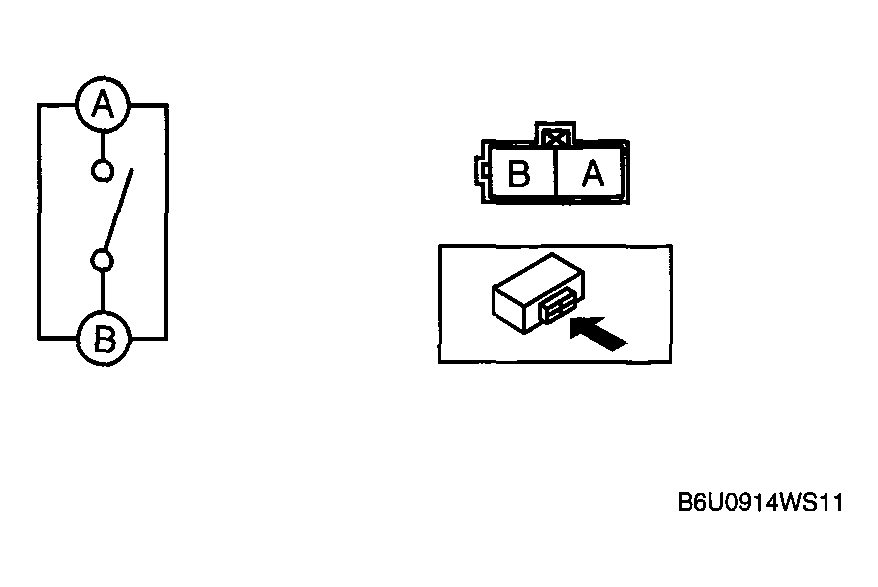

    Fig 2: Inspecting Trunk Key Cylinder Switch Connector Terminals
    G04323522Courtesy of MAZDA MOTORS CORP.
