Trunk Key Cylinder Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Detach the rod.
  4. Remove the nuts, then remove the trunk key cylinder.

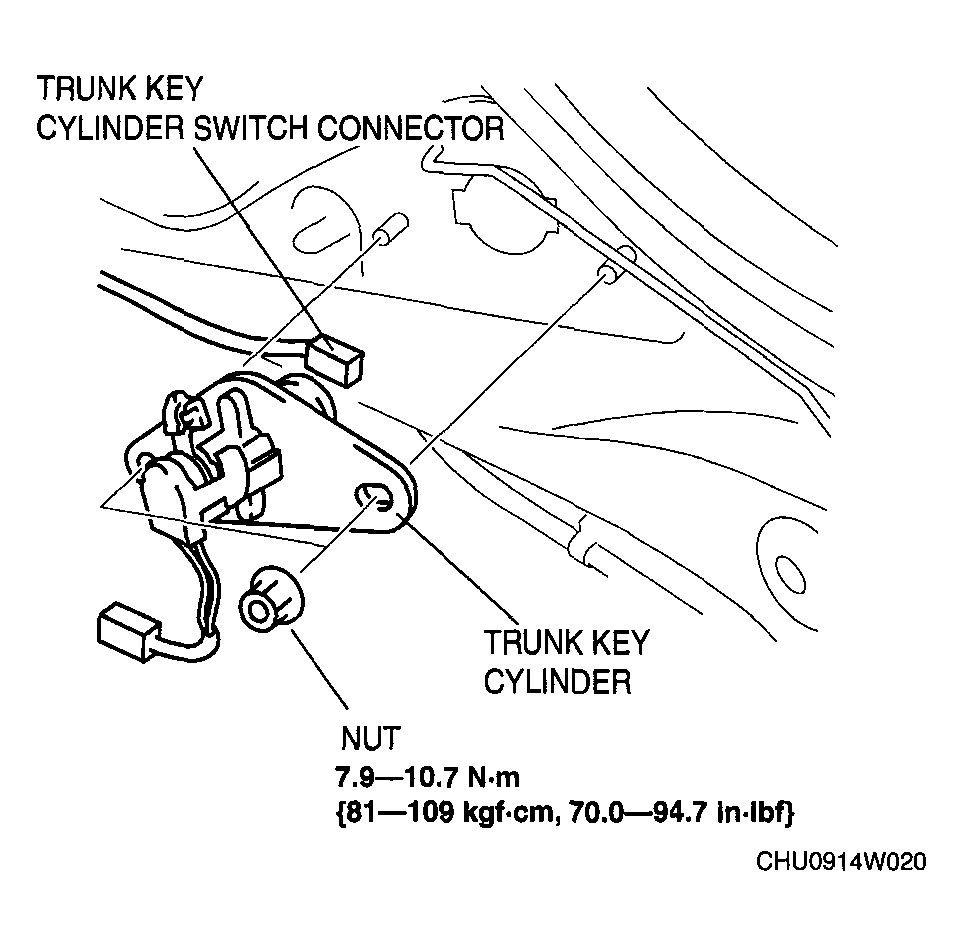

    5. Fig 1: Removing/Installing Trunk Key Cylinder With Torque Specifications
    G04323520Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
