Outer Handle Removal/Installation

  1. Remove the following parts:
    1. Door trim (See DOOR TRIM REMOVAL/INSTALLATION .)
    2. Door glass (See DOOR GLASS REMOVAL/INSTALLATION .)
    3. Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Door unit (See DOOR UNIT REMOVAL/INSTALLATION .)
  2. Detach the rod from the outer handle.
  3. Remove the cover.
  4. Remove the bolts.

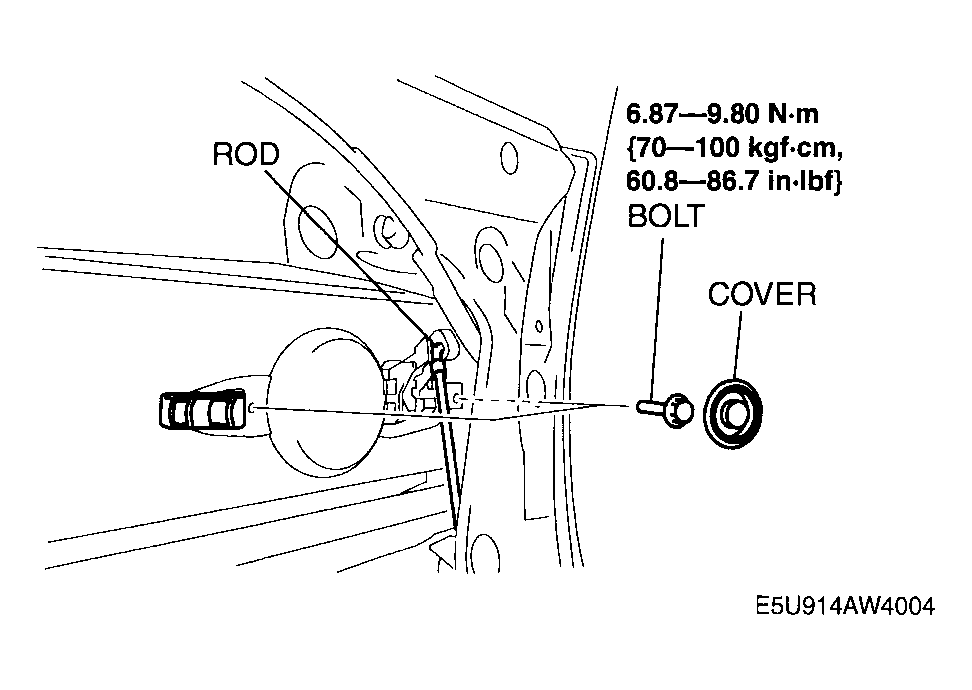

    Fig 1: Removing Outer Handle Bolts With Torque Specifications
    G04323497Courtesy of MAZDA MOTORS CORP.
  5. Secure the rear part of the front outer handle and, with the front outer handle lever pulled outward (1), remove the rear part of the front outer handle from the front door.
  6. Pull out the front part of the front outer handle from the front door.
  7. Install in the reverse order of removal.

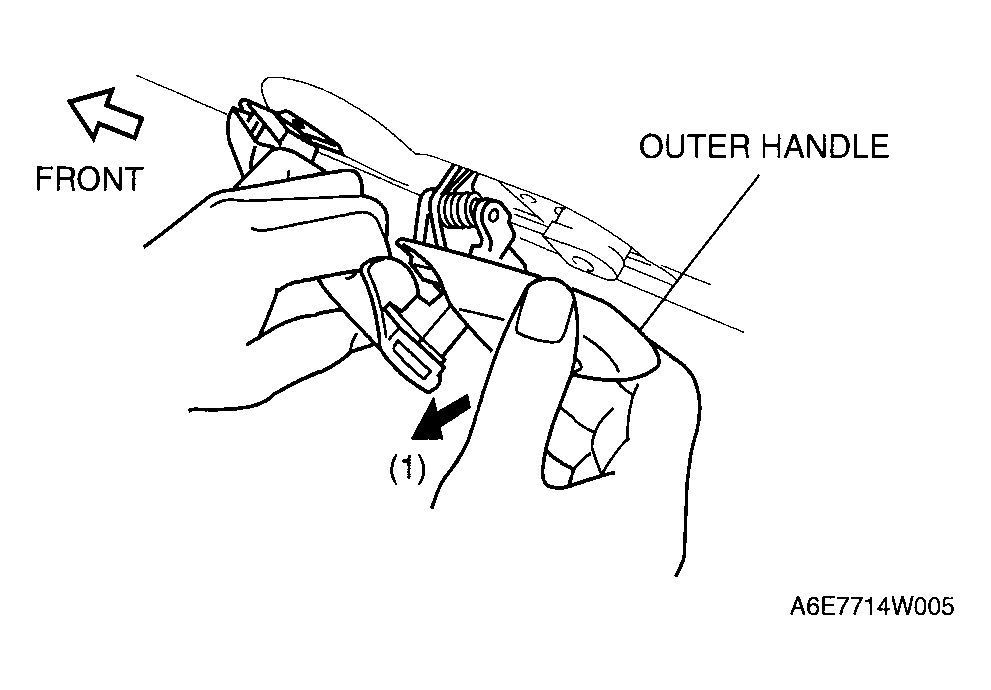

    Fig 2: Removing Outer Handle
    G04323498Courtesy of MAZDA MOTORS CORP.
