Hood Latch And Release Lever Removal/Installation: Notes

  1. Remove in the order indicated in Fig 1 .

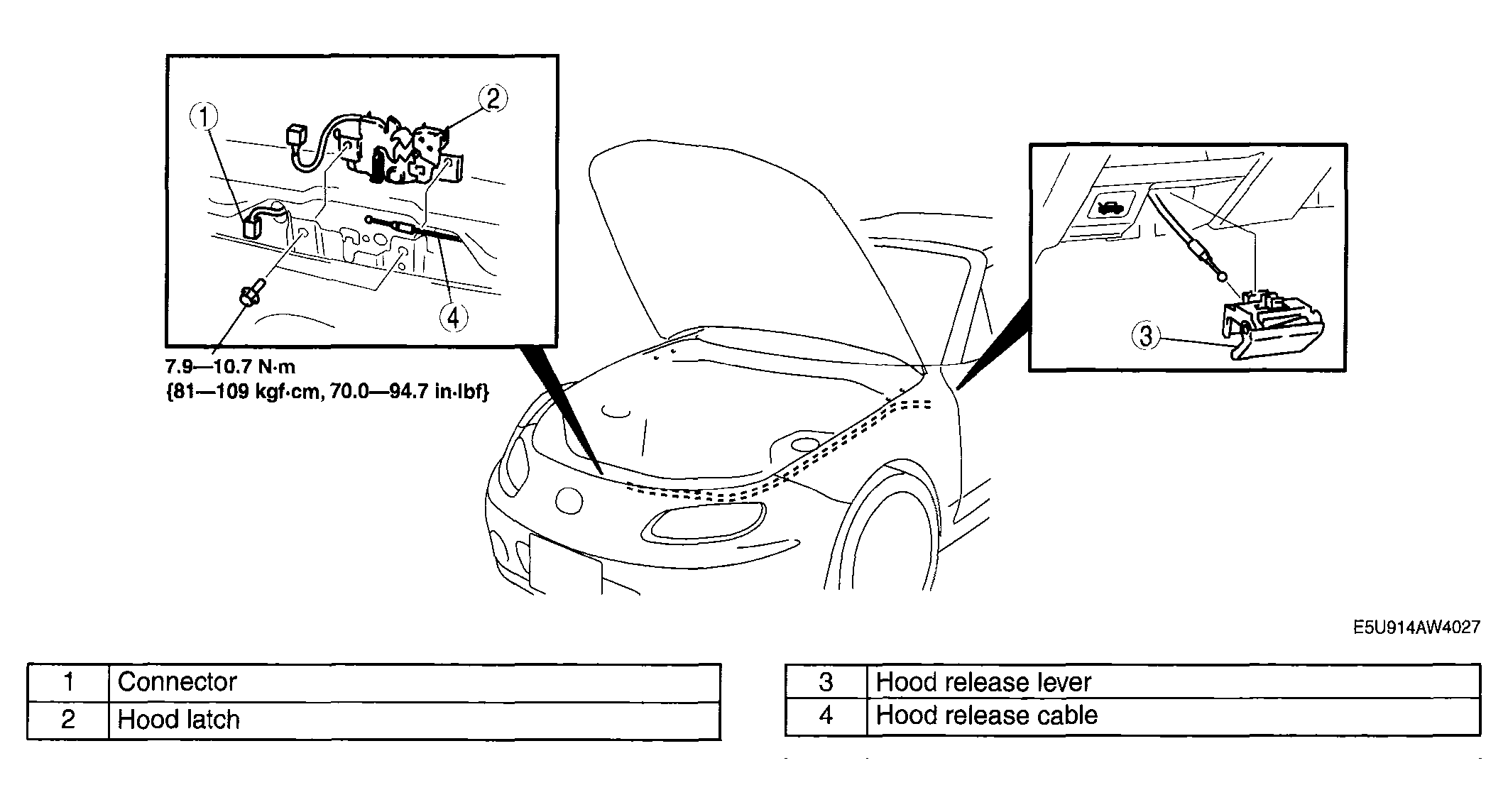

    Fig 1: Removing Hood Latch And Release Lever With Torque Specifications
    G04323513Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Adjust the hood. (See HOOD ADJUSTMENT .)
