Door Lock Switch Removal/Installation: RH

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the screws, then remove the door lock switch.

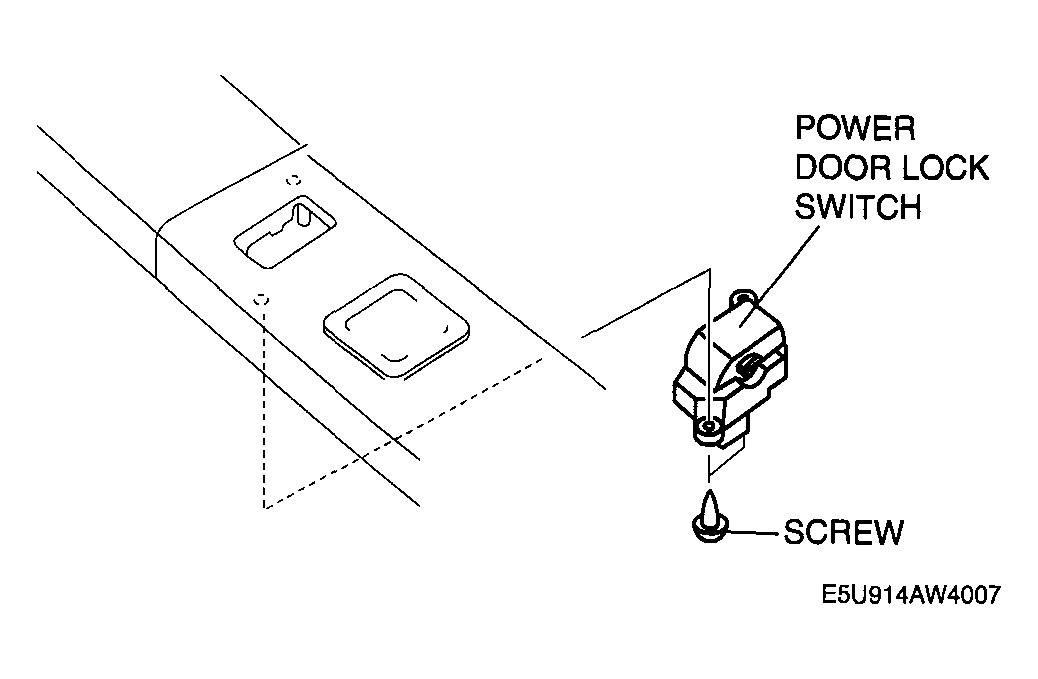

    4. Fig 1: Identifying Door Lock Switch - RH
    G04323509Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
