Door Lock Switch Inspection

  1. Inspect for continuity between the door lock switch terminals.
    • If not as specified, replace the door lock switch.

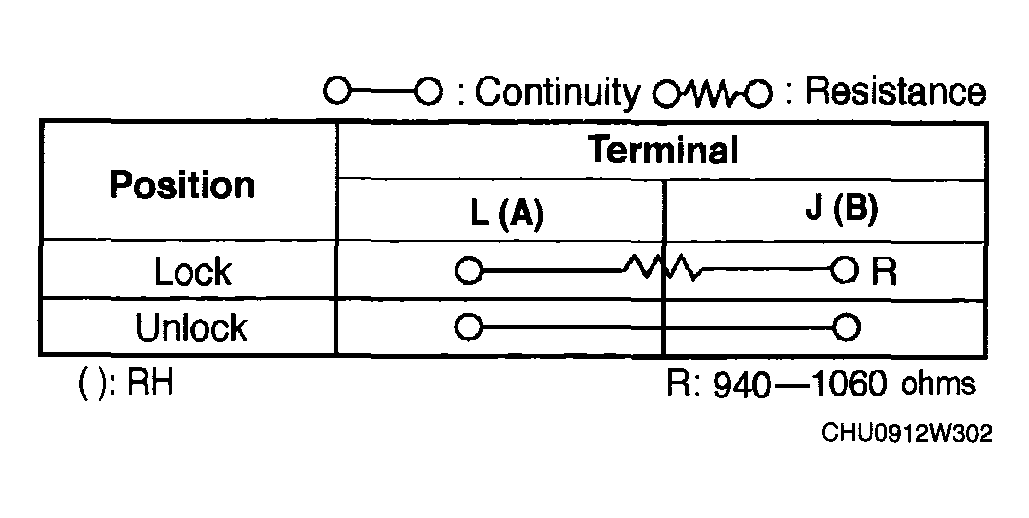

    Fig 1: Door Lock Switch Continuity Table
    G04323510Courtesy of MAZDA MOTORS CORP.

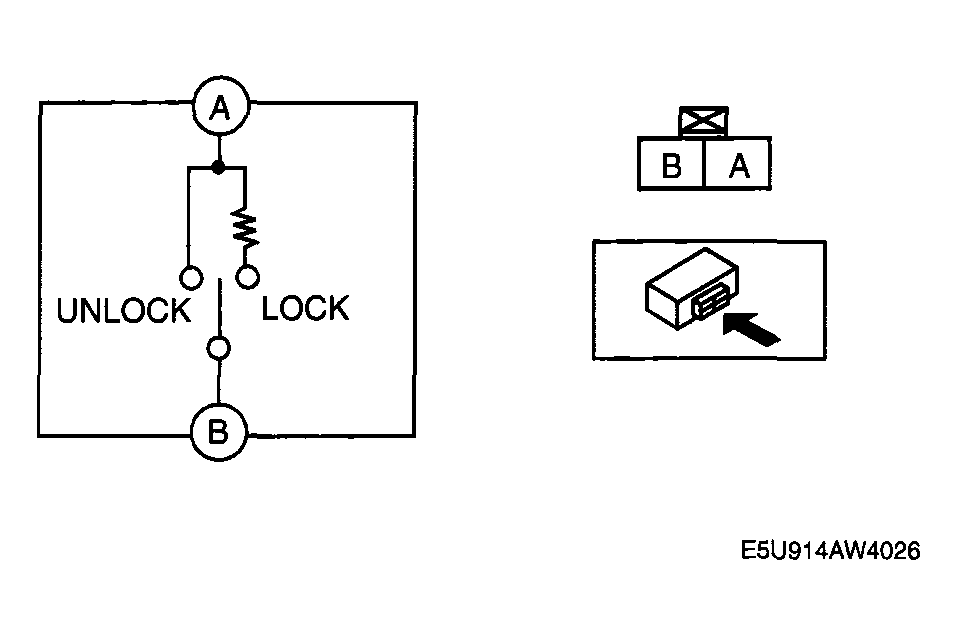

    Fig 2: Door Lock Switch Connector Terminals
    G04323511Courtesy of MAZDA MOTORS CORP.
