Flasher Control Module Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Disconnect the connector.
  4. Remove the screw and then remove the flasher control module.
  5. Install in the reverse order of removal.

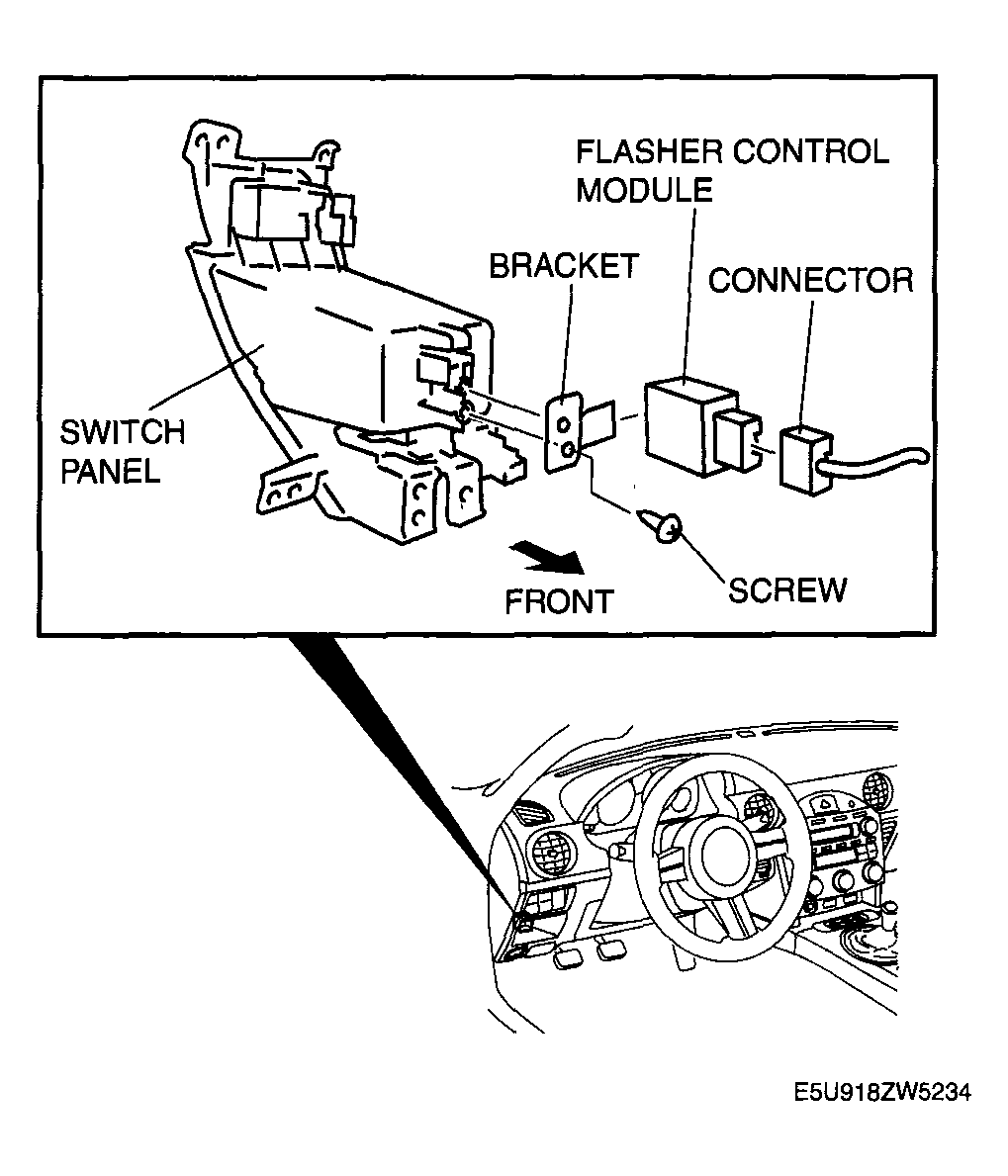

    Fig 1: Removing Flasher Control Module
    G04323726Courtesy of MAZDA MOTORS CORP.
