DRL Control Module Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Disconnect the connectors.
  4. Remove the screw and then remove the DRL control module.
  5. Install in the reverse order of removal.

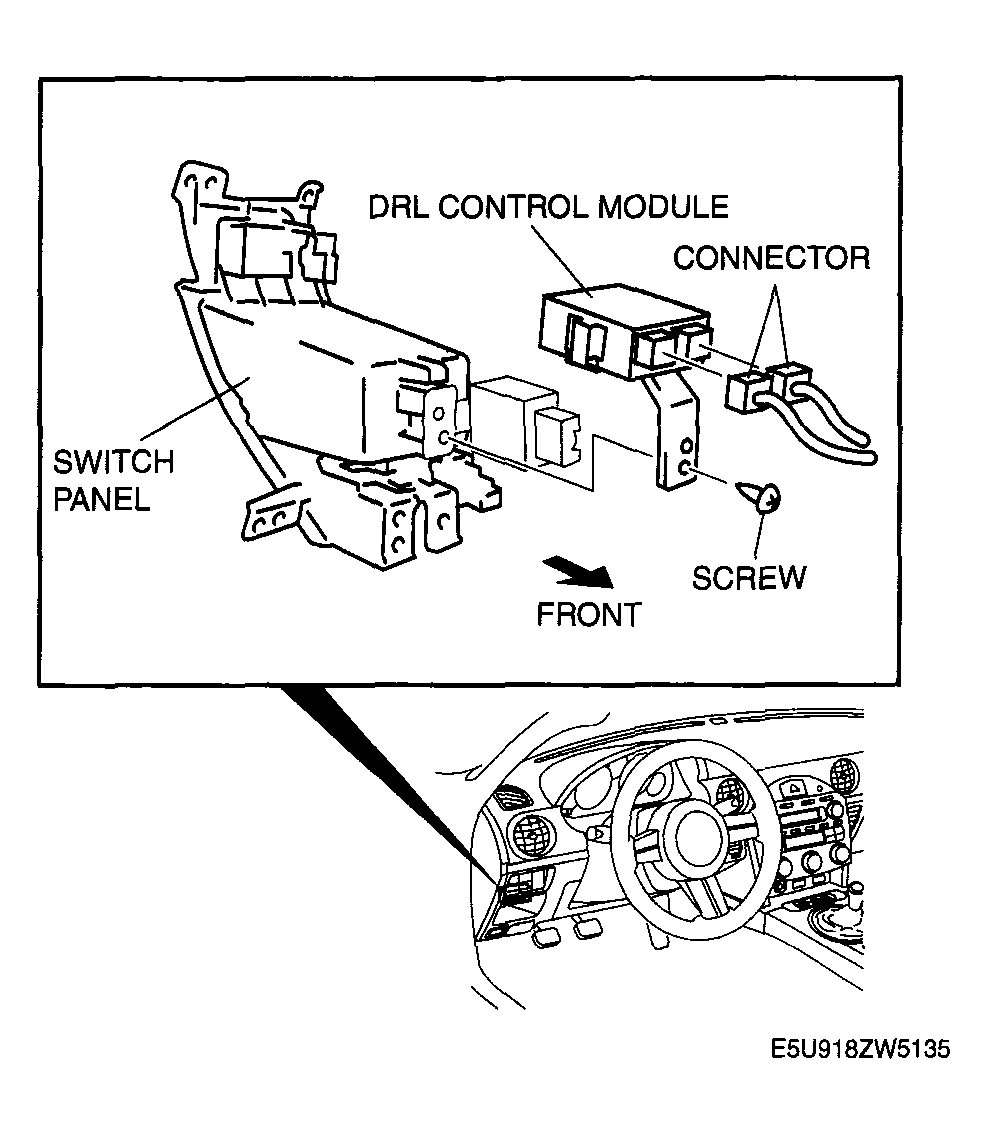

    Fig 1: Removing DRL Control Module
    G04323728Courtesy of MAZDA MOTORS CORP.
