Center Panel Unit Disassembly/Assembly: Notes

CAUTION:

Before disassembling the center panel unit, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.

Disassemble in the order indicated in Fig 1 .

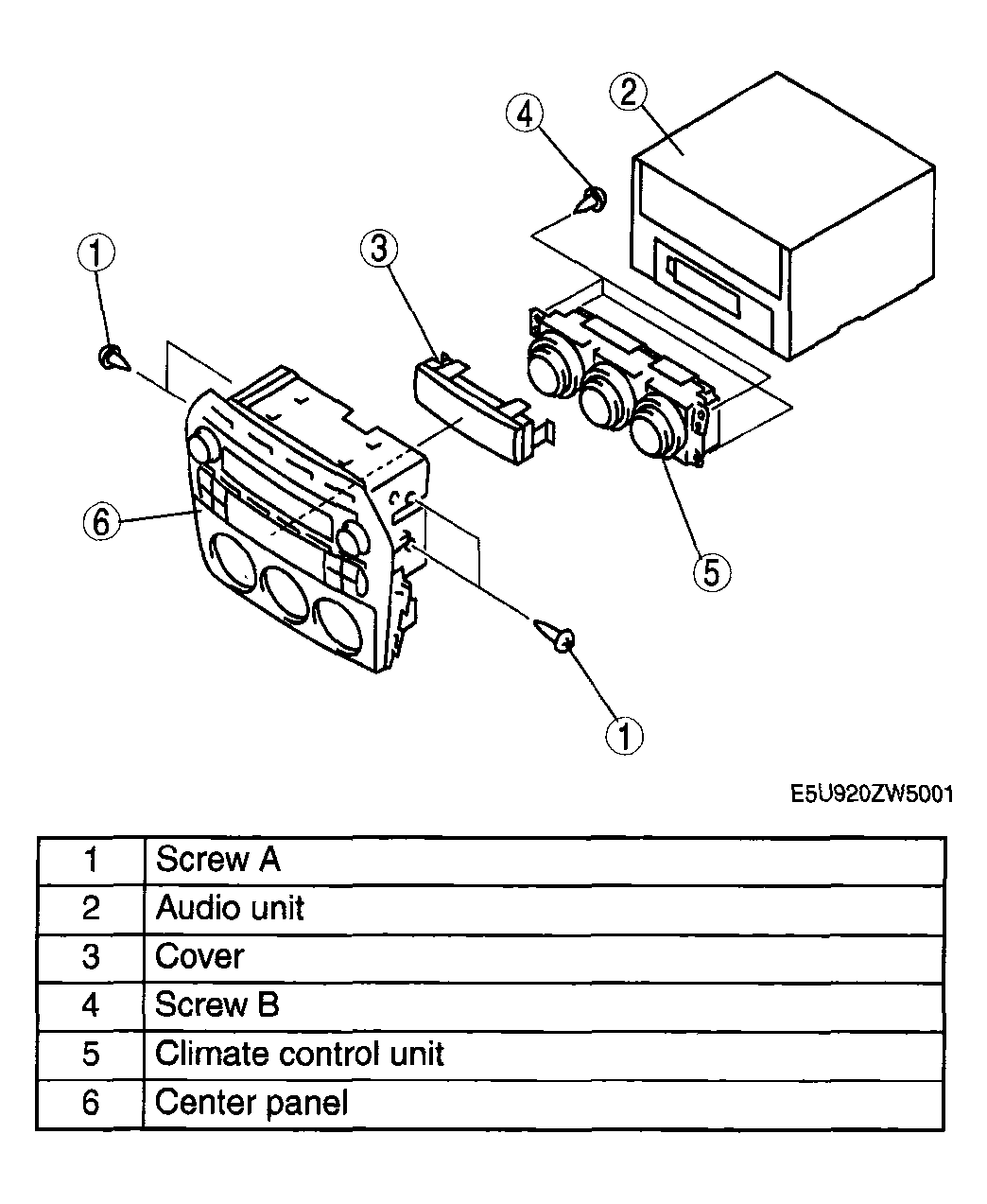

Fig 1: Exploded View Of Center Panel Unit Components
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
