Automatic Transaxle [Service, Removal & Installation]
>>
Road Test
>>
Typical Shift Diagram
Typical Shift Diagram

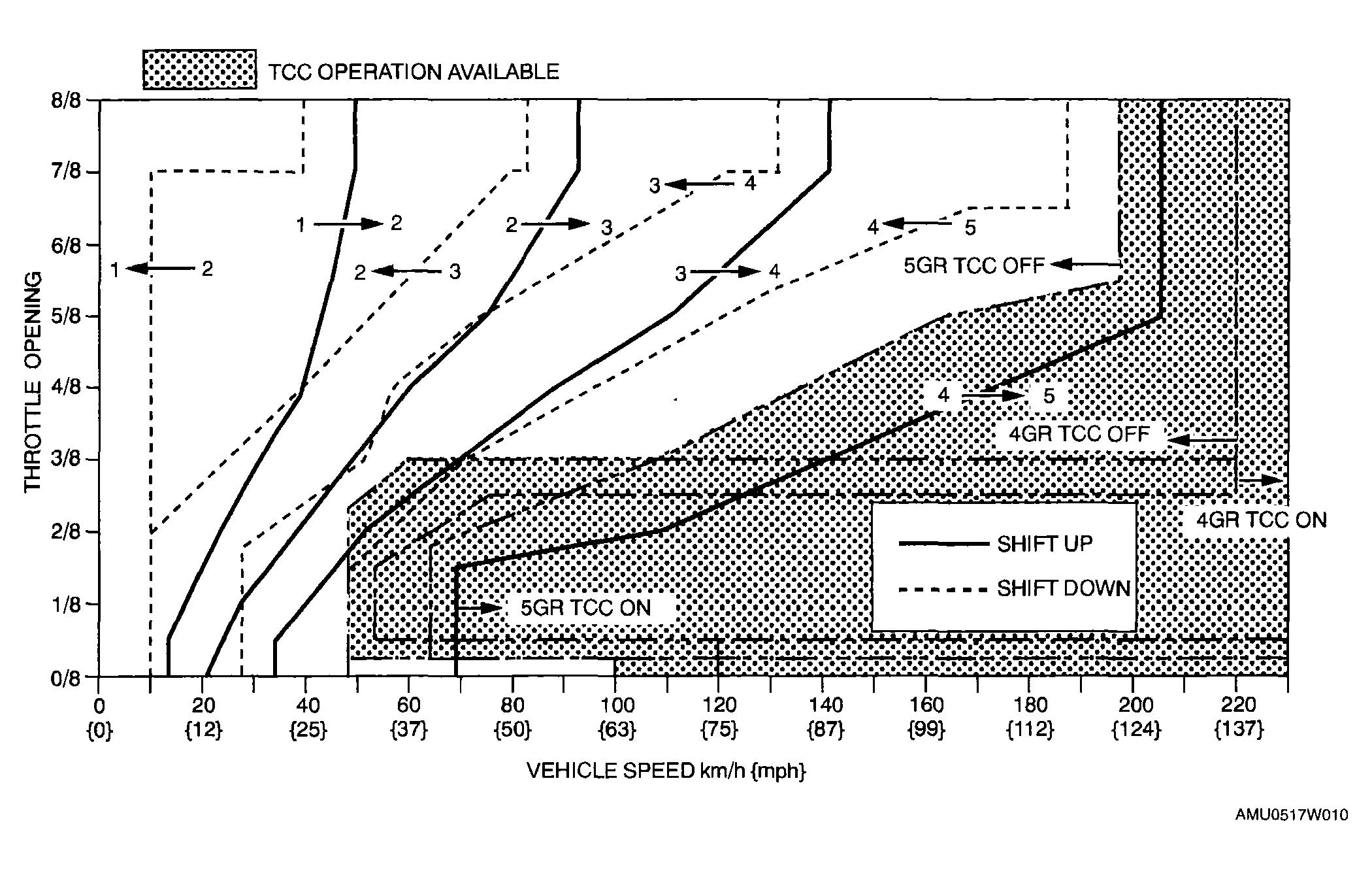

Fig 1: Typical Shift Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
