Inspection of Continuity

  1. Disconnect the O/D OFF switch connector.
  2. Inspect continuity at the O/D OFF switch.

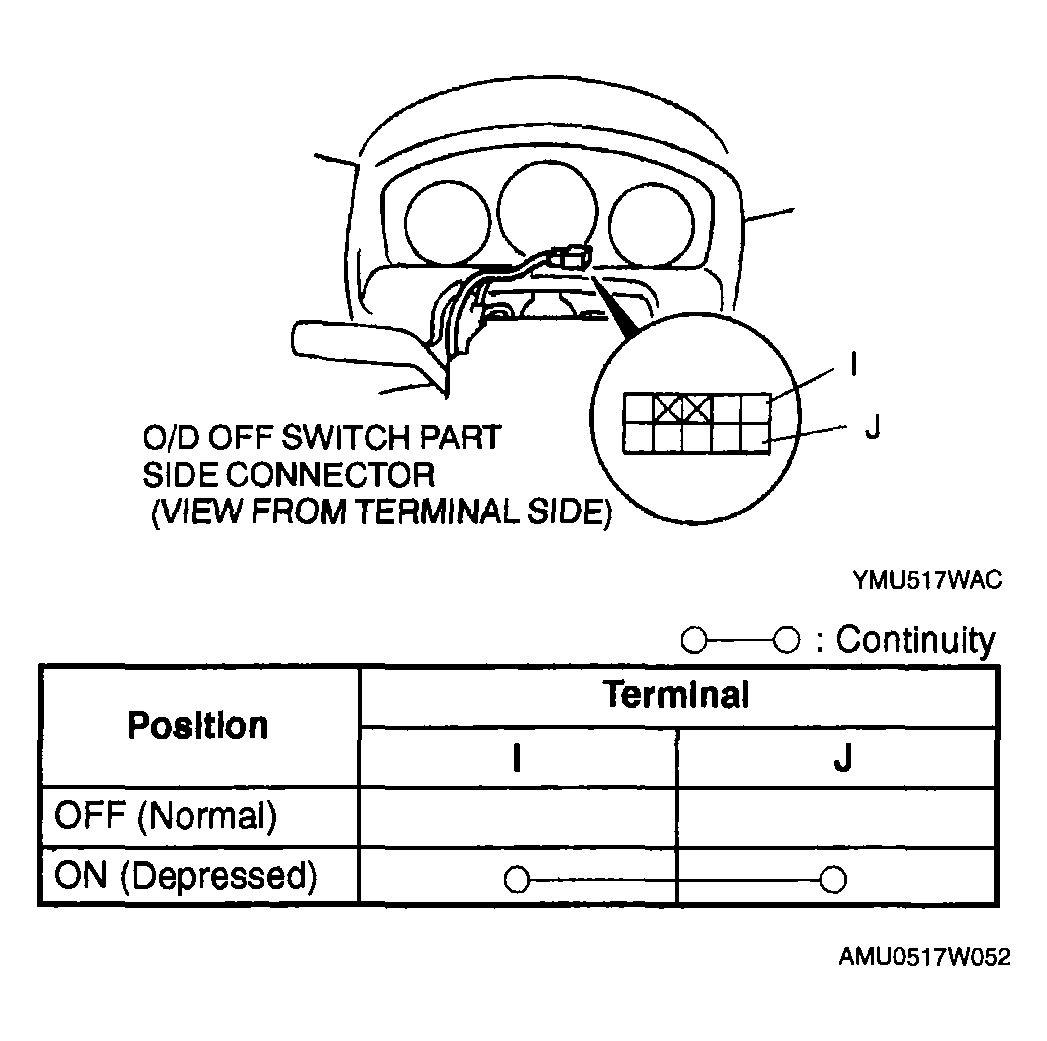

Fig 1: Identifying O/D Off Switch Connector & Continuity Reference Table
G04328722Courtesy of MAZDA MOTORS CORP.
