Drive Plate Mounting Bolts Installation Note

  1. Set the SST   or equivalent against the drive plate.
  2. Tighten the drive plate mounting bolts in two or three steps in the order shown.

    Tightening torque

    73-87 N.m {7.4-8.9 kgf.m, 54-64 ft.lbf}

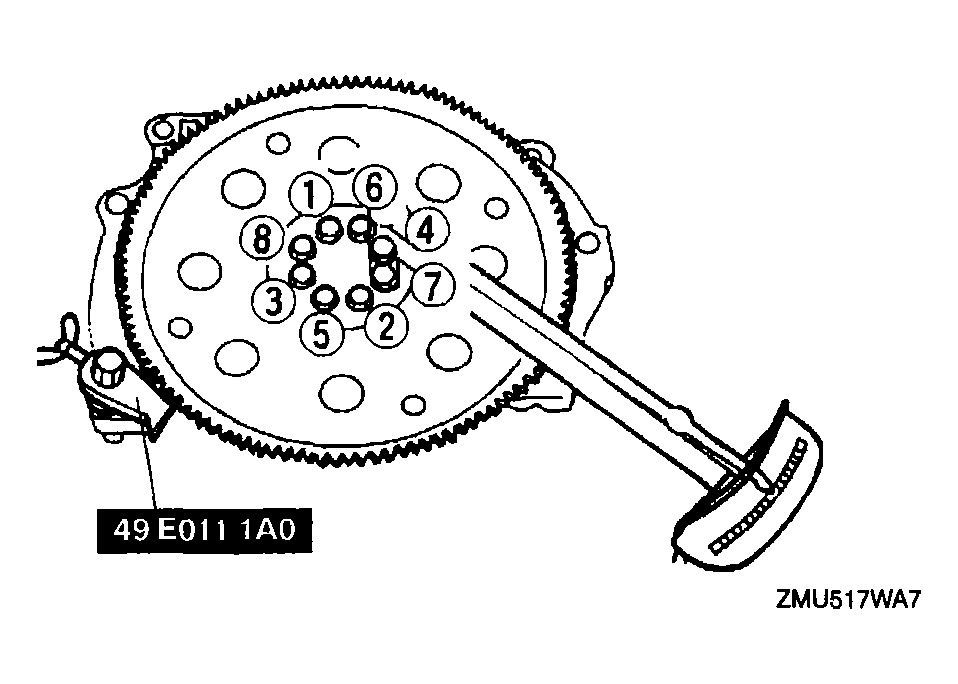

    Fig 1: Torquing Drive Plate Mounting Bolts In Sequence
    G04328807Courtesy of MAZDA MOTORS CORP.
