Rear Resistor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the rear side trim (RH). (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in Fig 1.
  4. Install in the reverse order of removal.

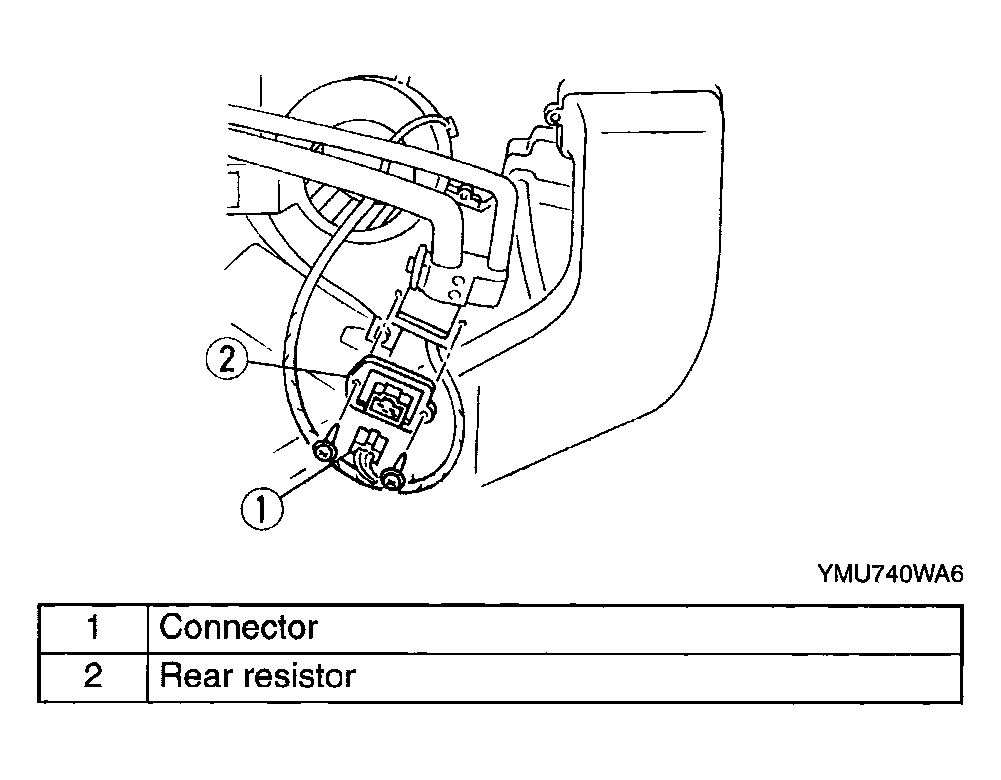

Fig 1: Identifying Rear Resistor
G04328970Courtesy of MAZDA MOTORS CORP.
