Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Control System (HVAC)
>>
Rear Main Fan Switch Inspection
Rear Main Fan Switch Inspection
Inspect for continuity between the rear main fan switch terminals using a tester.
If there is any malfunction, replace the rear main fan switch. (See
REAR MAIN FAN SWITCH DISASSEMBLY/ASSEMBLY
.)

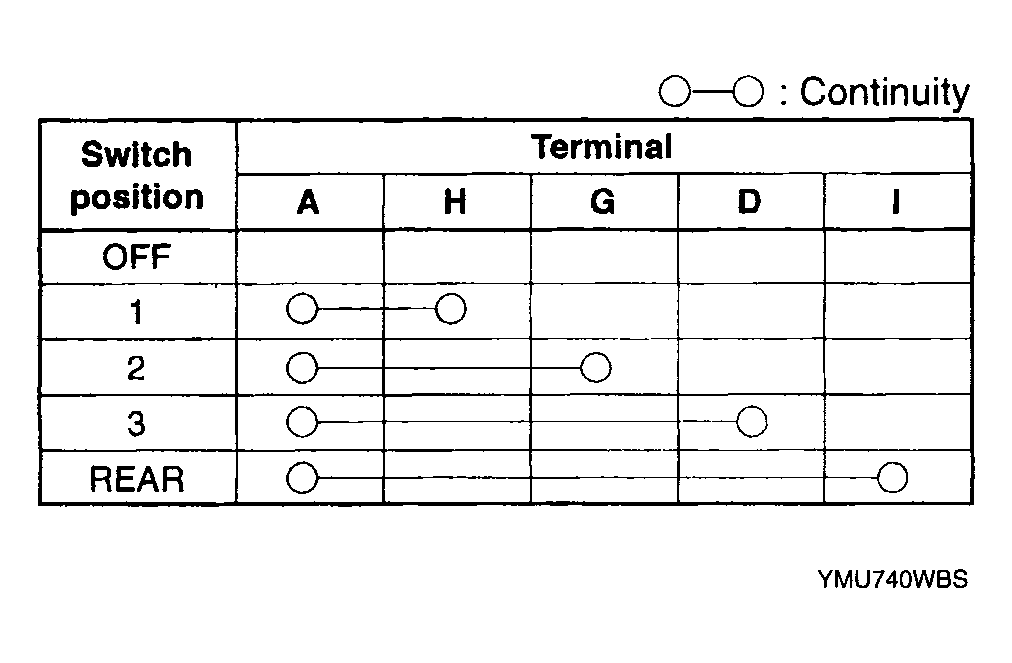

Fig 1: Rear Main Fan Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.
Fig 2: Rear Main Fan Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
