Rear Fan Switch Inspection

  1. Inspect for continuity between the rear fan switch terminals using a tester.
    • If there is any malfunction, replace the rear fan switch.

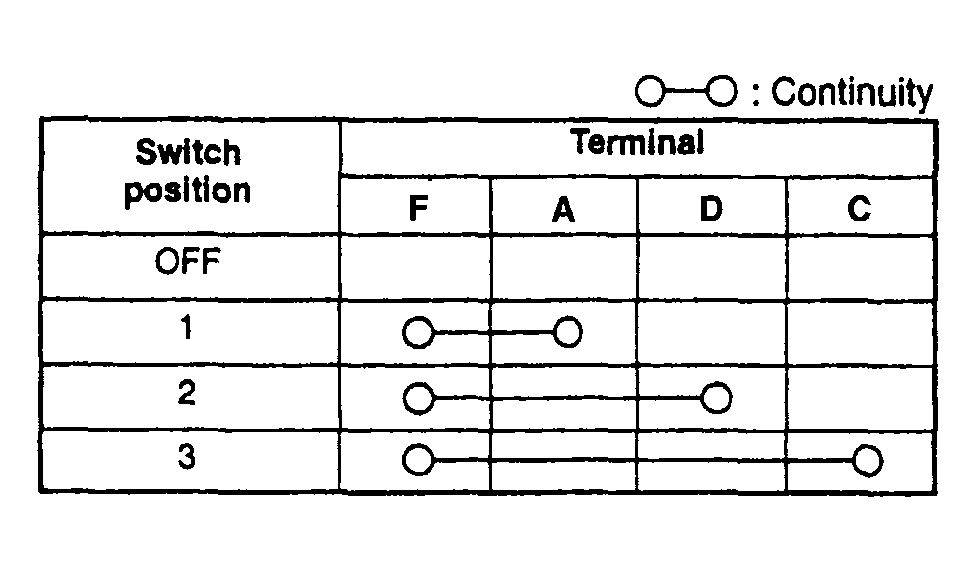

    Fig 1: Rear Fan Switch Continuity Table
    G04329007Courtesy of MAZDA MOTORS CORP.
    Fig 2: Identifying Rear Fan Switch Connector Terminals
    G04329008Courtesy of MAZDA MOTORS CORP.
