Magnetic Clutch Disassembly/Assembly

1. Remove the A/C compressor. (See A/C COMPRESSOR REMOVAL/INSTALLATION .)
2. Disassemble in the order indicated in Fig 1.
3. Assemble in the reverse order of disassembly.
4. Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)

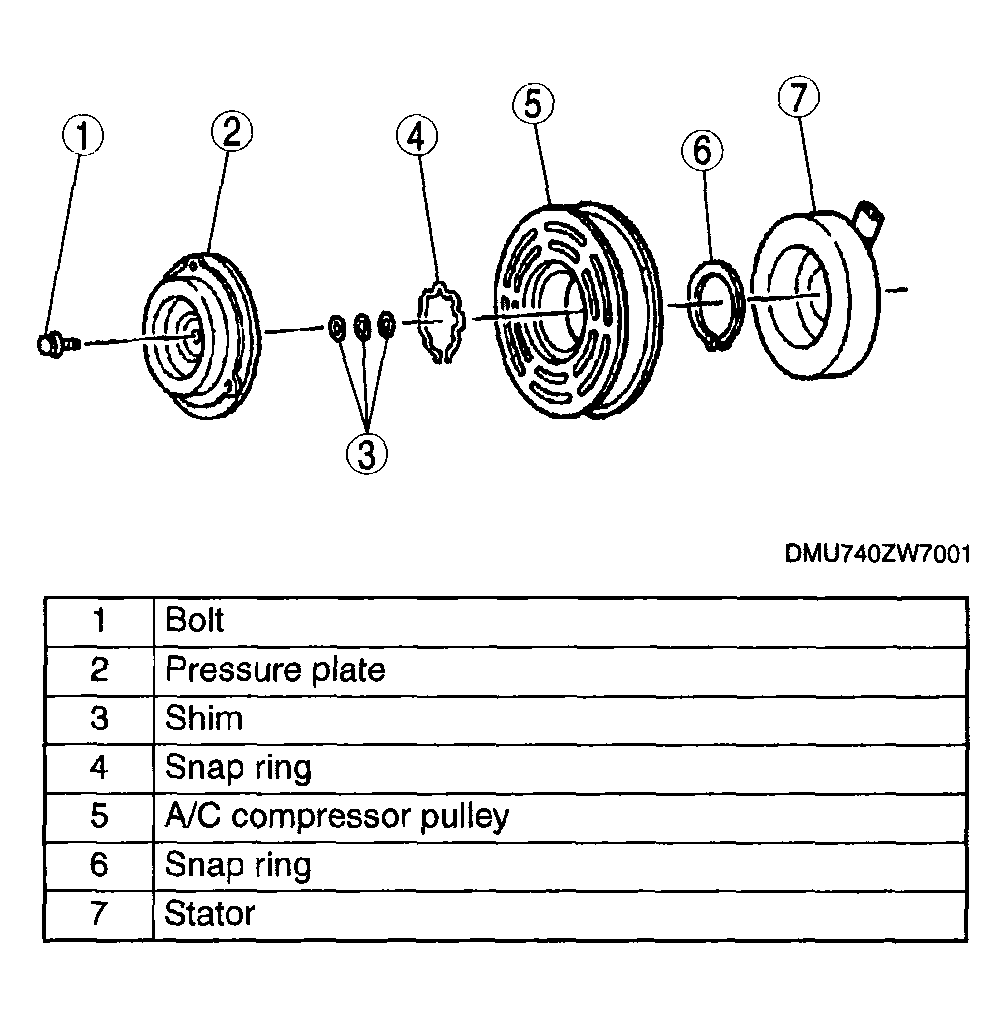

Fig 1: Identifying Magnetic Clutch Components

Courtesy of MAZDA MOTORS CORP.
