Front Blower Motor Removal/Installation

1. Disconnect the negative battery cable.
2. Remove the under cover.
3. Remove in the order indicated in Fig 1.
4. Install in the reverse order of removal.

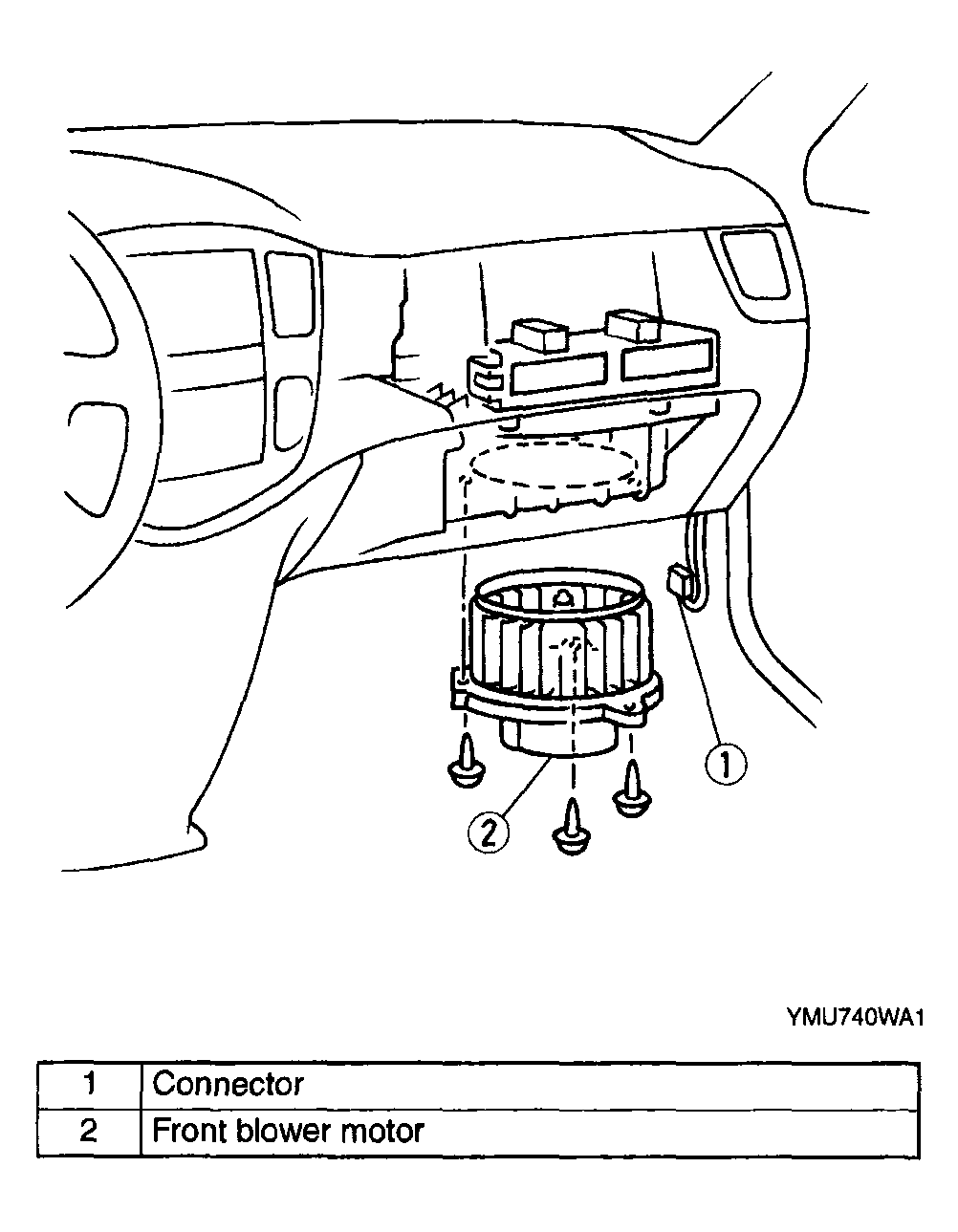

Fig 1: Identifying Front Blower Motor

Courtesy of MAZDA MOTORS CORP.
