Refrigerant Lines Removal/Installation: Front

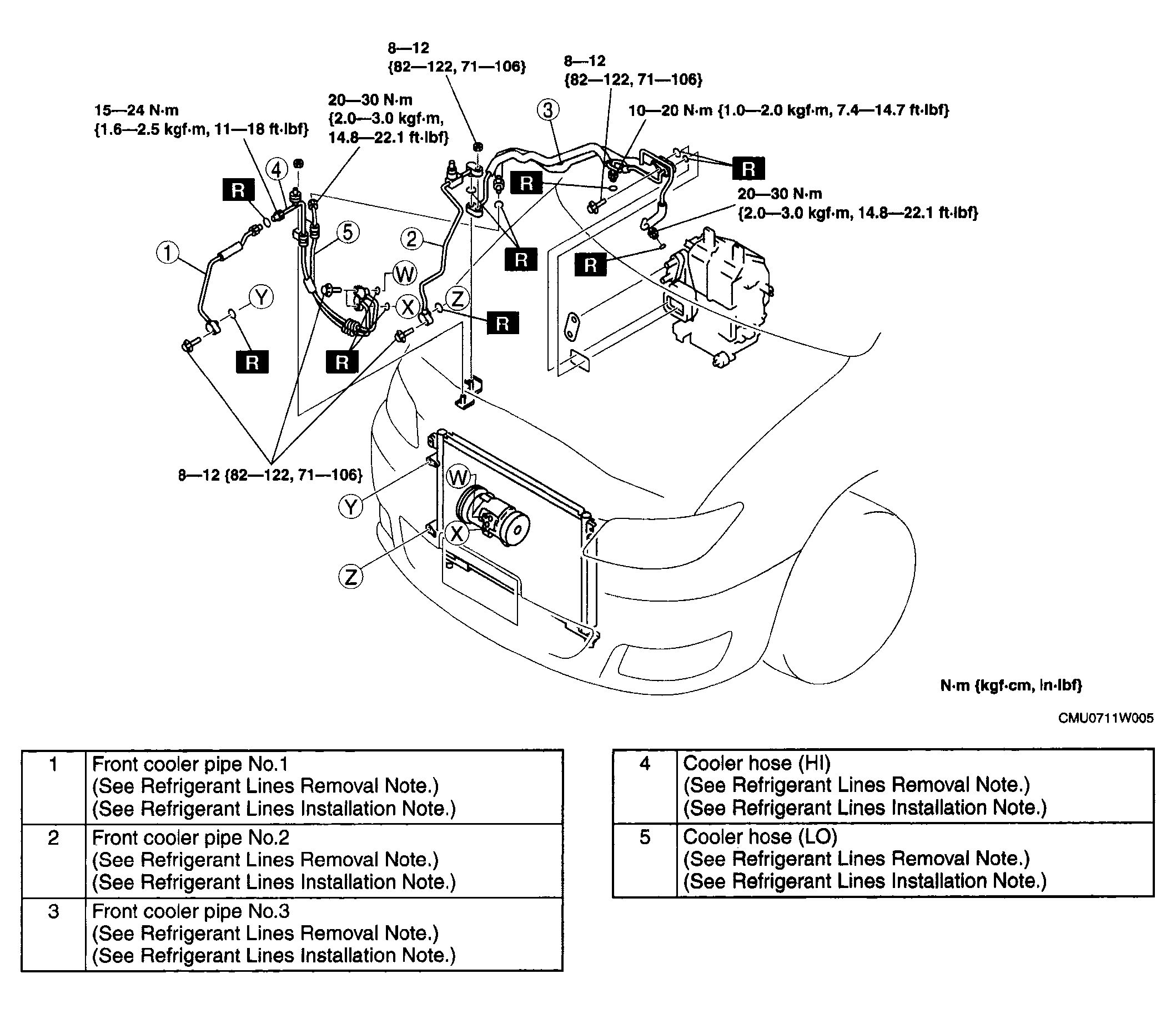

Fig 1: Removing/Installing Refrigerant Lines (Front) With Torque Specifications

G04328962

Courtesy of MAZDA MOTORS CORP.
