Heater Pipe And Hose Component Removal/Installation: Notes
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [AJ] .)

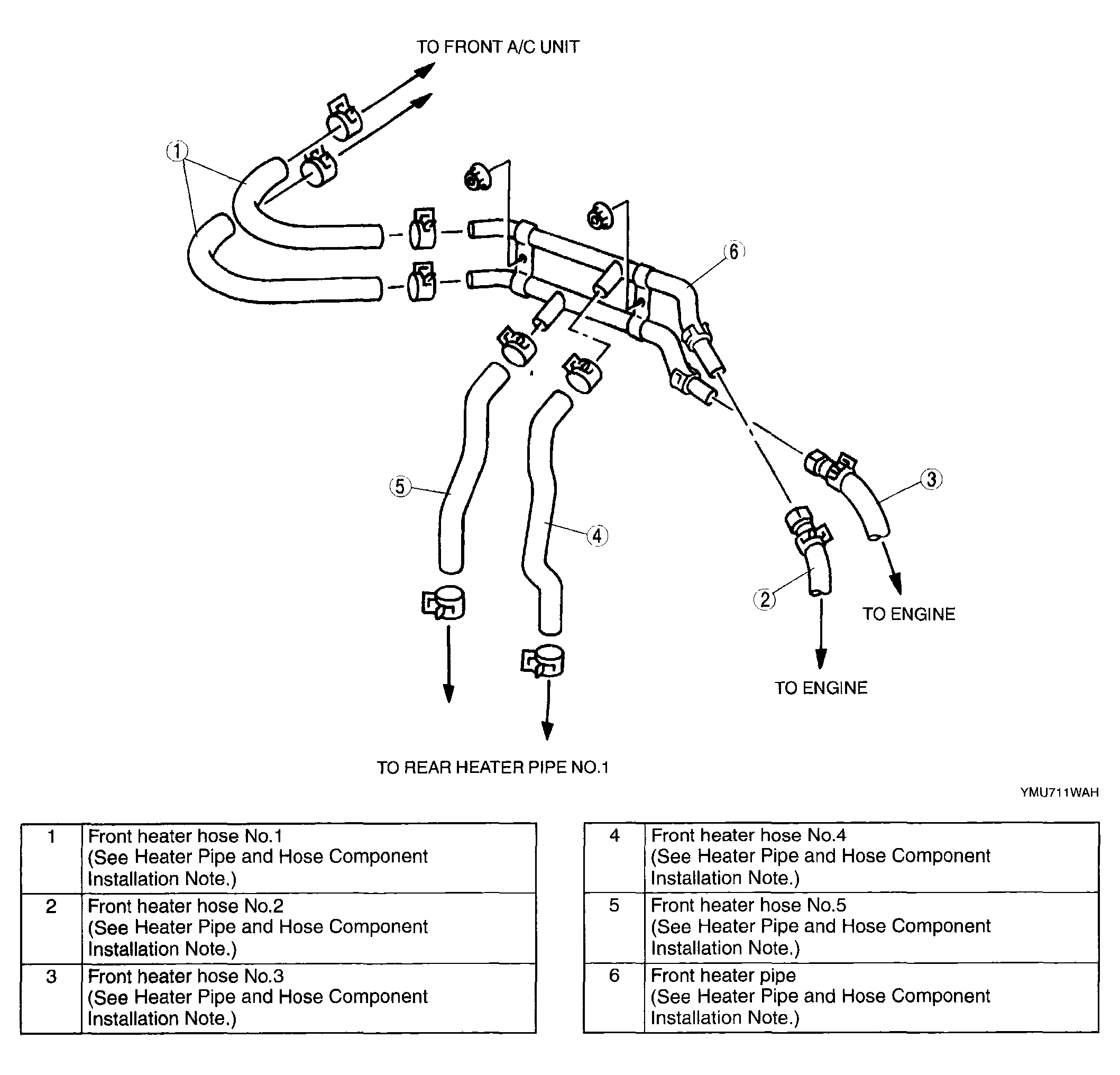

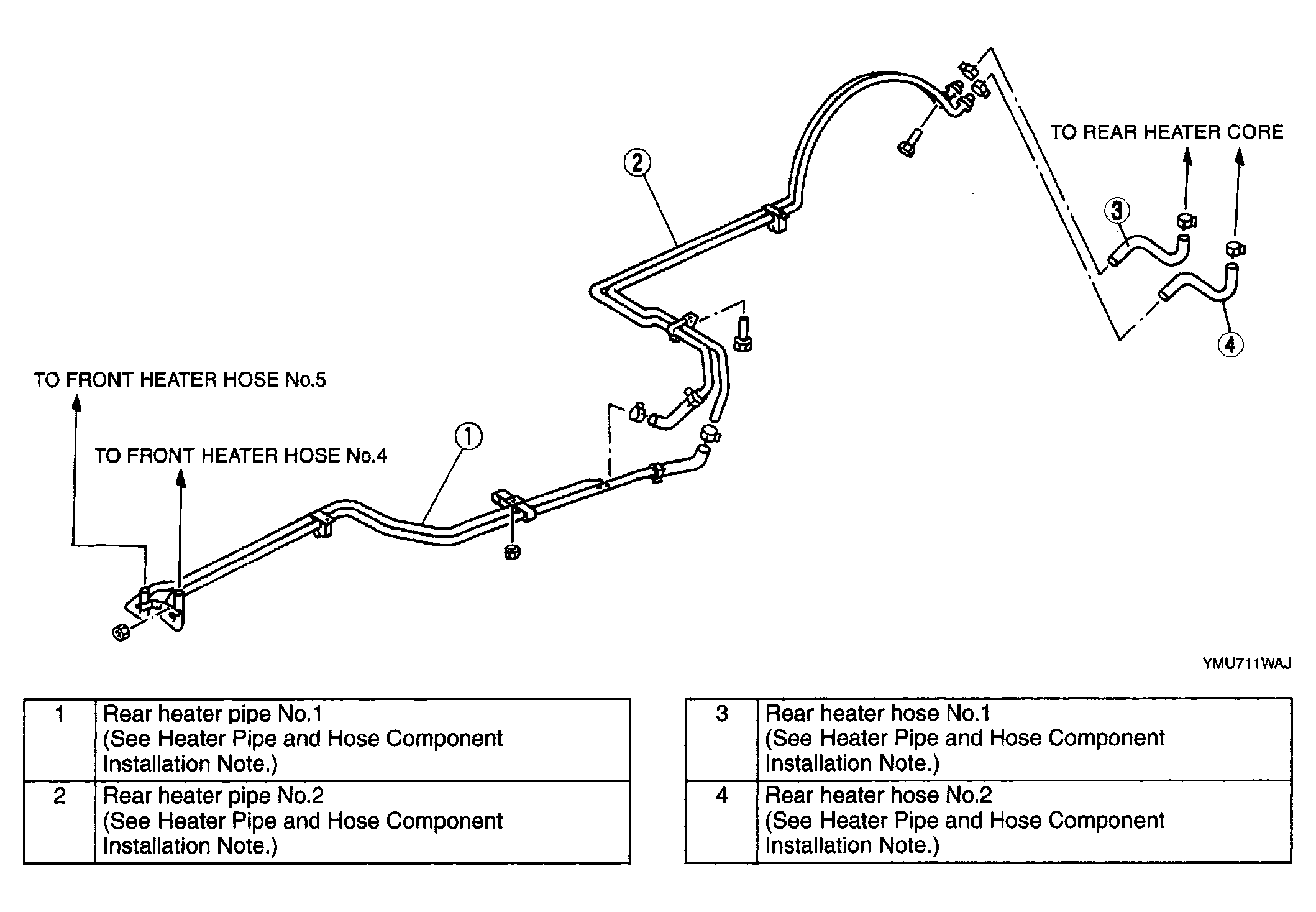

- Remove in the order indicated in Figure or Figure.
- Remove the following parts, depending on rear heater pipe to be removed.HEATER PIPE AND HOSE COMPONENT REFERENCE
Rear heater pipe to be removed Parts to be removed Rear heater pipe No.1 - Front crossmember (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
- Rear cooler pipe No.1 (See REFRIGERANT LINES REMOVAL/INSTALLATION .)
Rear heater pipe No.2 - Rear cooler pipe No.2 (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
- Install in the reverse order of removal.
- Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [AJ] .)
