How To Use This Documentation
>>
Procedures for Use
>>
Using the symptom troubleshooting
Using the symptom troubleshooting
Symptom troubleshooting shows diagnostic procedures, inspection methods, and proper action to take for each trouble symptom.

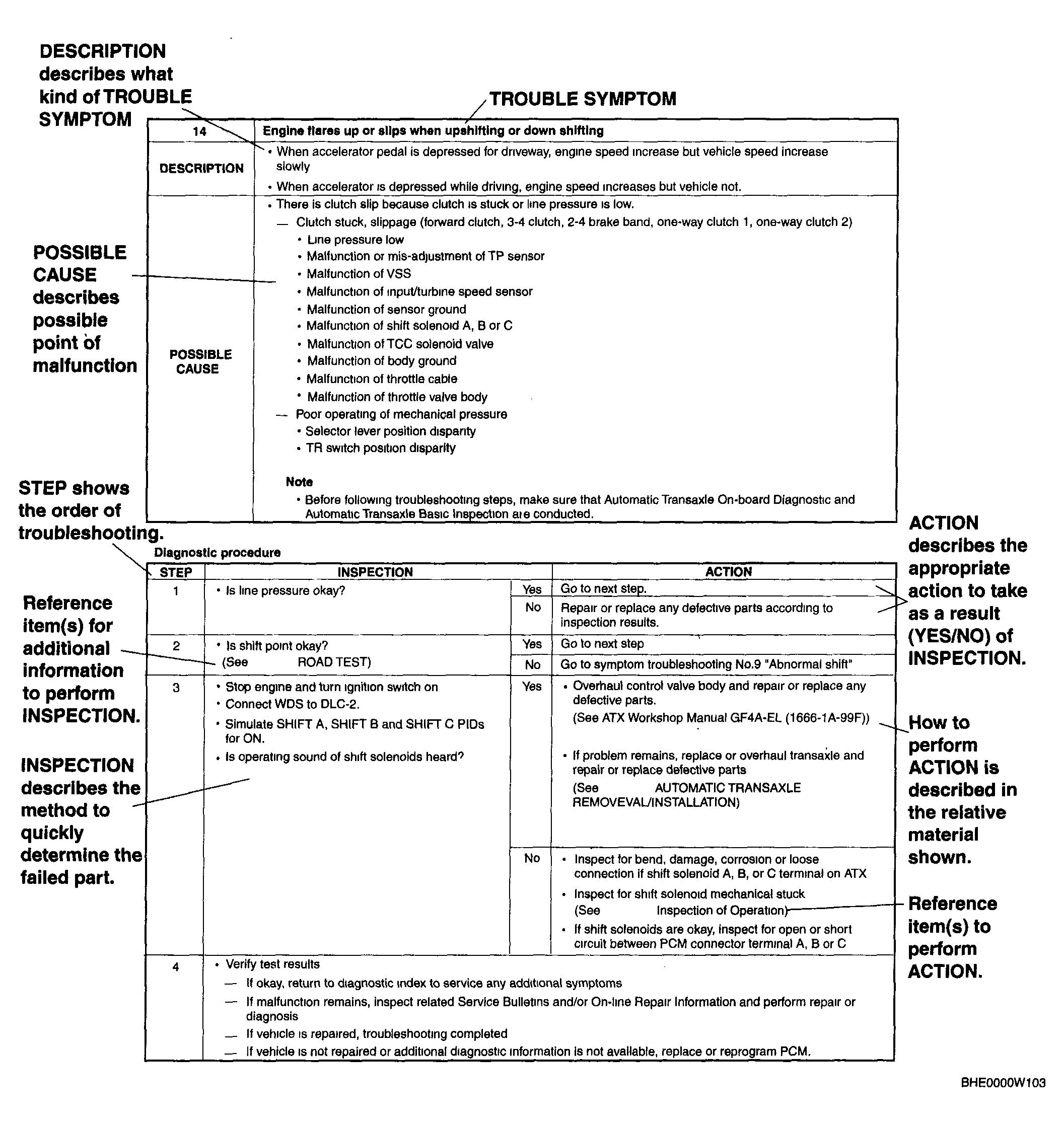

Fig 1: Symptom Troubleshooting Actions Description
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
