Instrument Cluster System Wiring Diagram

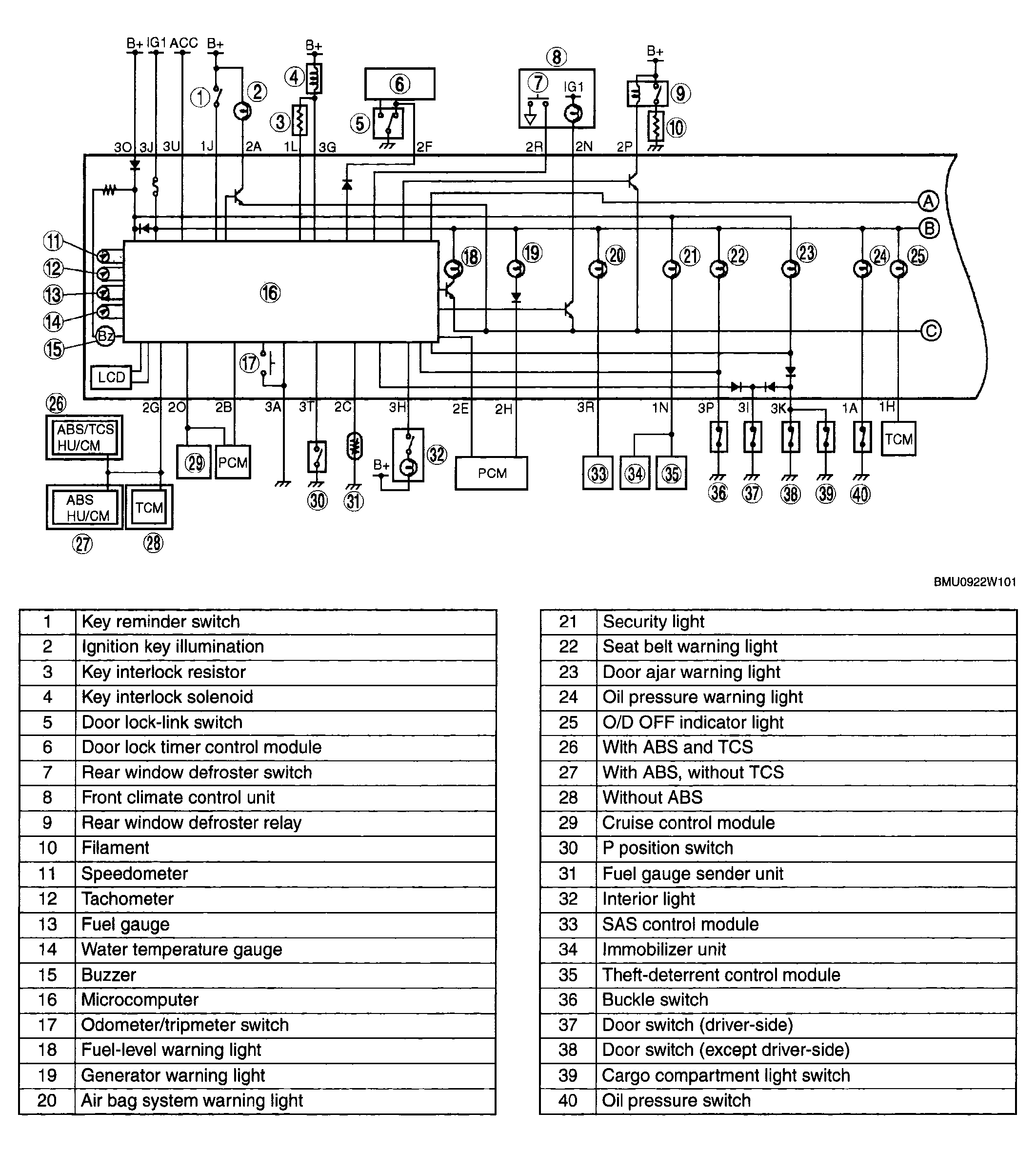

Fig 1: Instrument Cluster System Wiring Diagram (1 of 2)

Courtesy of MAZDA MOTORS CORP.

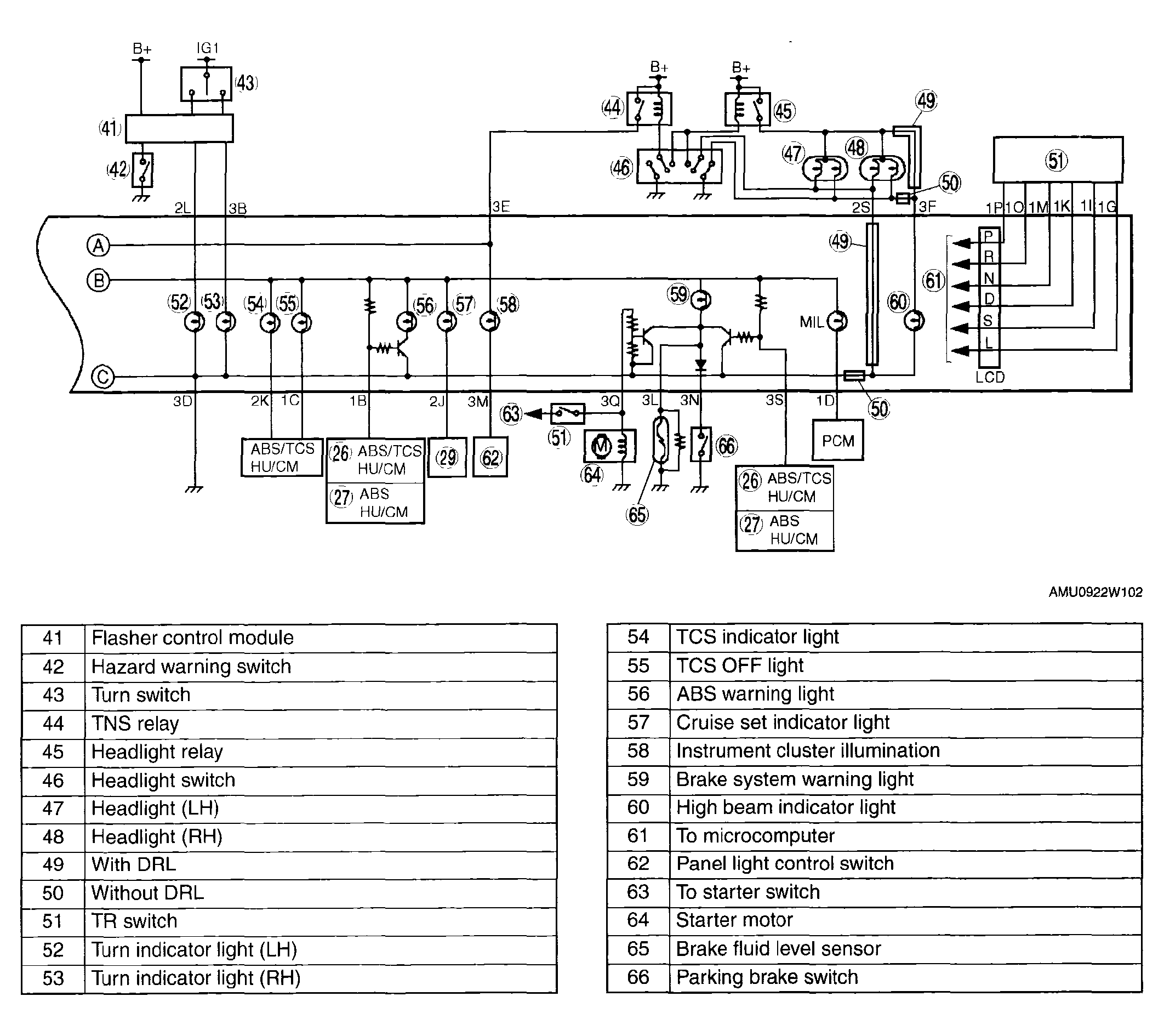

Fig 2: Instrument Cluster System Wiring Diagram (2 of 2)

Courtesy of MAZDA MOTORS CORP.
