Brake Pipe Removal Note
Brake Pipe Removal Note
Mark the brake pipe connecting positions before removal for reference during installation.

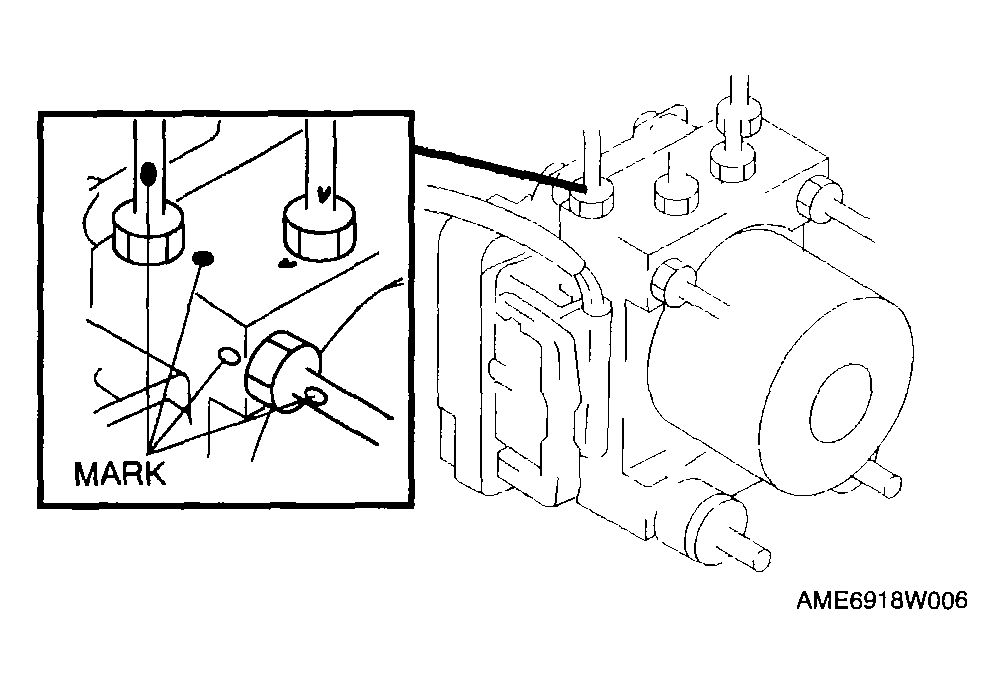

Fig 1: Removing Brake Pipe
Courtesy of MAZDA MOTORS CORP.
