A-Pillar Trim Removal/Installation

  1. Turn the seaming welt over.
  2. Disengage clips A and B using a fastener remover.
  3. Pull the A-pillar trim upward, then disengage hooks C and D, and remove the A-pillar trim.
  4. Install in the reverse order of removal.

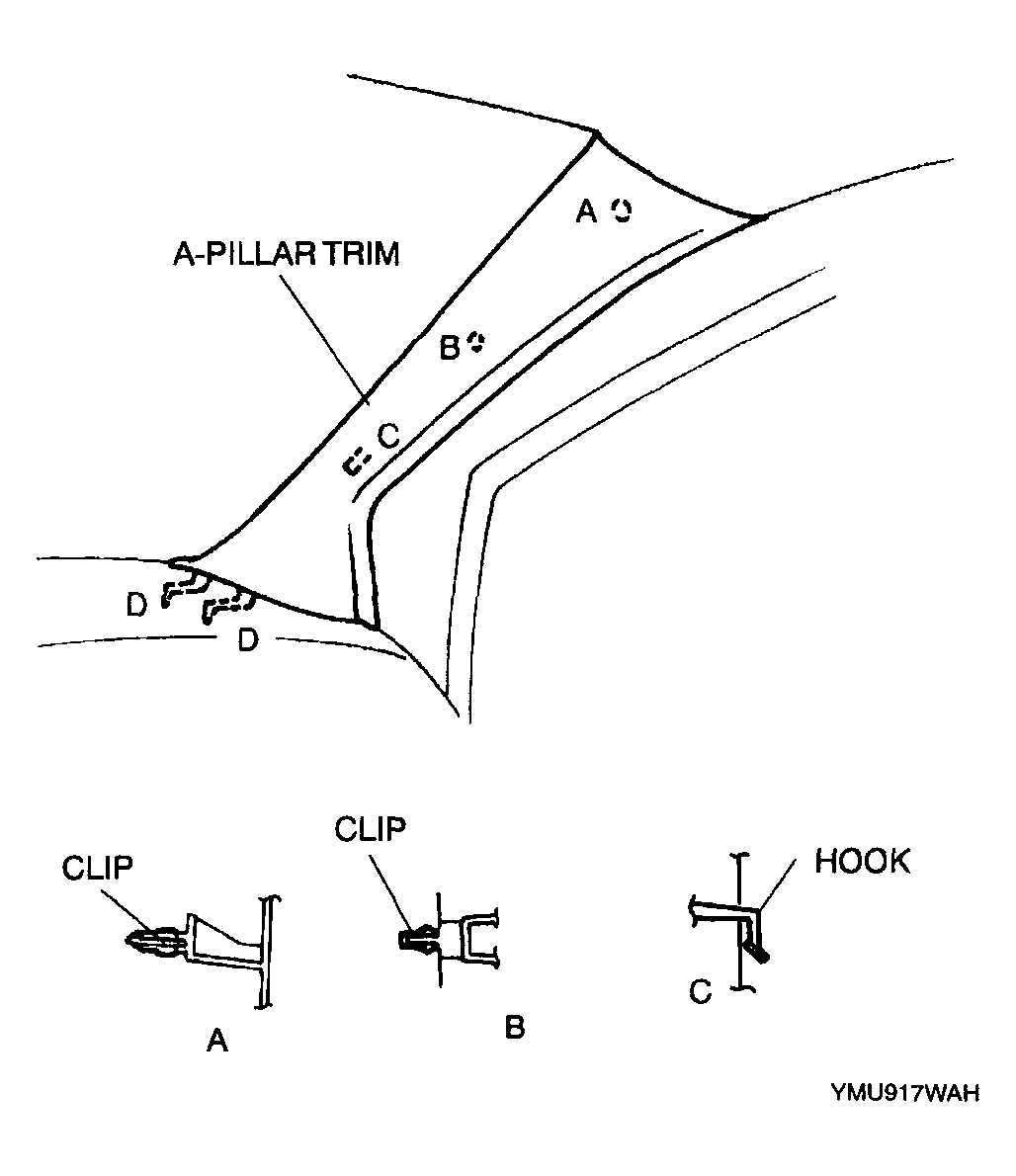

Fig 1: Identifying A-Pillar Trim
G04329640Courtesy of MAZDA MOTORS CORP.
