Restraints
>>
Air Bag, SRS
>>
On-Board Diagnostic [Air Bag System - Two-Step Deployment Control System)
>>
Air Bag System Wiring Diagram [Two-Step Deployment Control System]
Air Bag System Wiring Diagram [Two-Step Deployment Control System]

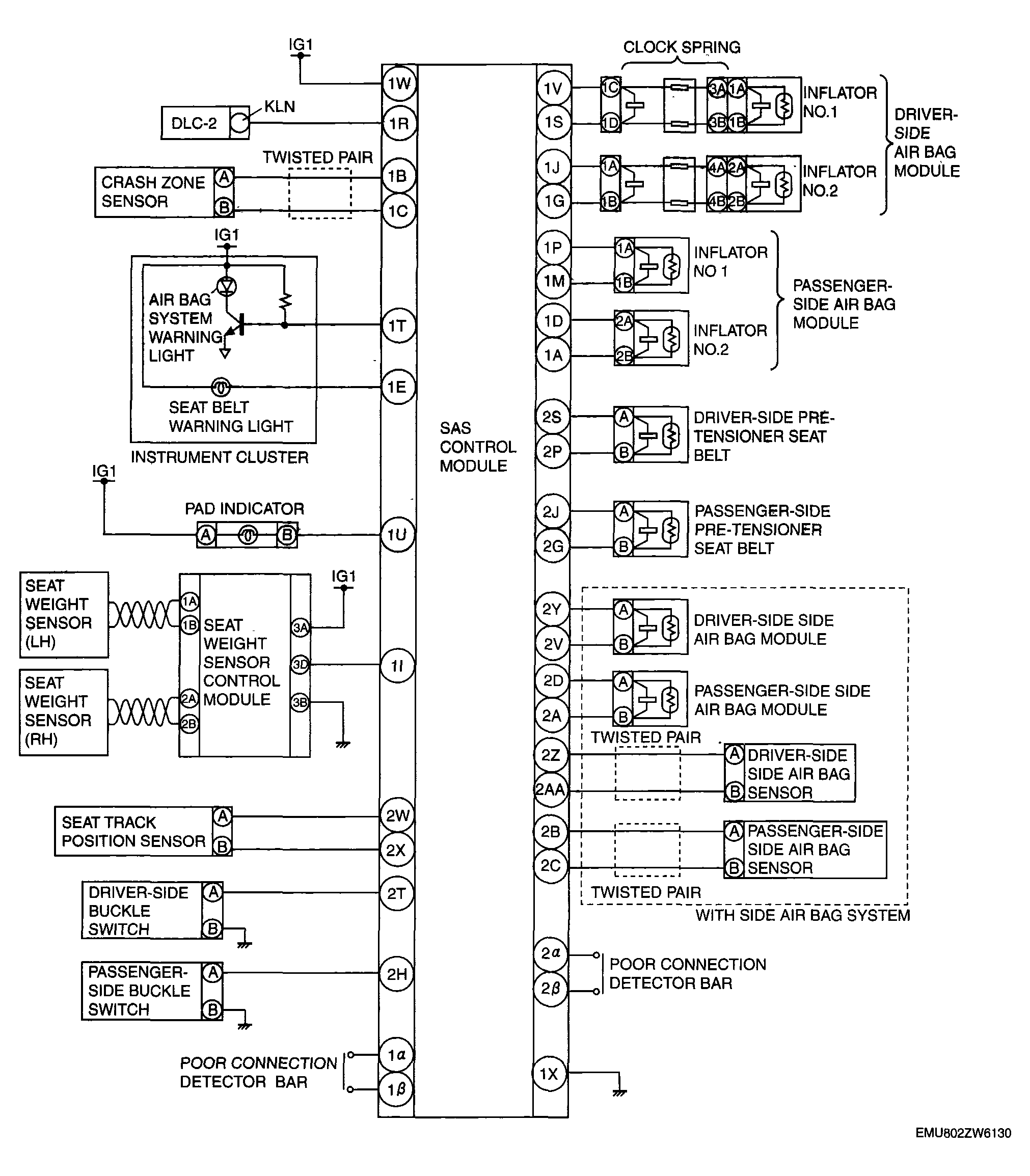

Fig 1: Air Bag System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
